Samsung Semi-Automatic Washing Machine Control Board Failed? Restore Full Functionality Today

Is your Samsung semi-automatic washing machine control panel completely unresponsive, 13 buttons not working, or machine won't start at all? The Samsung 13-button washing machine PCB board from Faritha is the authentic original AAA refurbished replacement that restores complete programme control, full functionality, and reliability to your Samsung semi-automatic washing machine.

Most Samsung semi-automatic twin-tub washing machines sold across India between 2012-2020 featured advanced 13-button control panels for comprehensive wash programmes, fabric selection, wash intensity control, and multiple rinse options. When the PCB control board fails (often from power surges, water damage, or manufacturing defects), all 13 buttons stop responding and the machine becomes completely non-functional. Our AAA refurbished original Samsung PCB board is fully tested, comprehensively verified, and ready for immediate installation — delivering OEM-level performance, reliability, and longevity at a fraction of new board costs.

Don't replace your entire semi-automatic washing machine for a failed control board. Restore your Samsung washing machine's complete functionality and extend its lifespan 8-12 years with this authenticated original Samsung PCB board replacement today.

Understanding Samsung Semi-Automatic Washing Machine Control Systems

Samsung semi-automatic twin-tub washing machines represent a popular, durable washing solution across India, offering excellent wash quality, long service life, and independent control over wash and spin cycles. These machines use sophisticated 13-button control panels to provide advanced programme selection optimized for different fabric types, soil levels, and water conservation modes.

The 13-button panel offers users exceptional flexibility: five wash intensity and fabric type buttons (Gentle for delicates, Normal for everyday clothing, Heavy for stubborn stains, Cotton Programme for 100% cotton fabrics, Synthetic Programme for polyester/blended fabrics), three rinse selection buttons (1-Rinse for water conservation, 2-Rinse for standard cleaning, 3-Rinse for heavily soiled loads), and five control buttons (Wash Start, Wash Stop/pause, Spin Start, Spin Stop, Drain). Each button controls specific functions: power management, wash intensity, cycle duration, motor speed, solenoid valve timing, and water level management.

The PCB (Printed Circuit Board) is the machine's central nervous system — a microchip-based circuit board that processes each button press, activates solenoid valves for water inlet/drainage, controls motor speed variations, manages timer functions, and coordinates the entire wash sequence. When a PCB board fails, none of the 13 buttons can communicate with the machine's motor and solenoid systems — the entire machine becomes unresponsive and non-functional.

Why PCB Boards Fail: Samsung washing machine PCB boards typically fail due to: (1) power surges or voltage fluctuations damaging micro-circuits, (2) water seepage into the sealed board enclosure causing corrosion of copper traces, (3) age-related deterioration of solder joints connecting components after 8-10 years of continuous use, (4) manufacturing defects in rare cases, or (5) mechanical damage to the board during machine servicing. Most Samsung semi-automatic machines remain fully functional except for the PCB board failure — water pumps, motors, solenoid valves, and structural components continue working normally. PCB board replacement costs only ₹2,748 (AAA refurbished) versus ₹18,000-25,000 for a new machine — an 88% cost saving.

What is AAA Refurbished? Complete Quality Assurance & Grading Standards

AAA Refurbished Grade means: (1) The PCB board is a genuine original Samsung component (not aftermarket, not Chinese imitation) recovered from decommissioned Samsung semi-automatic machines that reached end-of-life for reasons other than board failure (2) All 13 individual buttons and circuit functions have been systematically tested for electrical response and proper signaling (3) The board has undergone professional cleaning to remove dust, corrosion deposits, and oxidation from copper traces (4) Comprehensive circuit inspection for hairline cracks, cold solder joints, or component defects using magnification and continuity testing (5) Voltage delivery verification ensuring proper power delivery to solenoid valve circuits and motor control relays (6) Wire connector testing for secure terminal connection and proper amperage handling (7) Final functional load testing with actual motor and solenoid loads connected to simulate real-world machine operation under full electrical load. AAA-grade boards come with manufacturer warranty and functionality guarantees identical to new OEM boards from Samsung service centers.

Cost Benefit Analysis: AAA refurbished original Samsung PCB boards cost ₹2,748 — approximately 60-70% less expensive than new OEM boards (₹6,500-8,000) from Samsung authorized service centers, while delivering 100% equivalent functionality, reliability, and warranty coverage. Most AAA refurbished boards (recovered from machines only 5-7 years old) have substantial remaining lifespan — average 8-12 years additional service life — far exceeding typical customer expectations. Industry data shows AAA refurbished boards have failure rates below 2% within 12 months, compared to 1% for new OEM boards — essentially identical reliability.

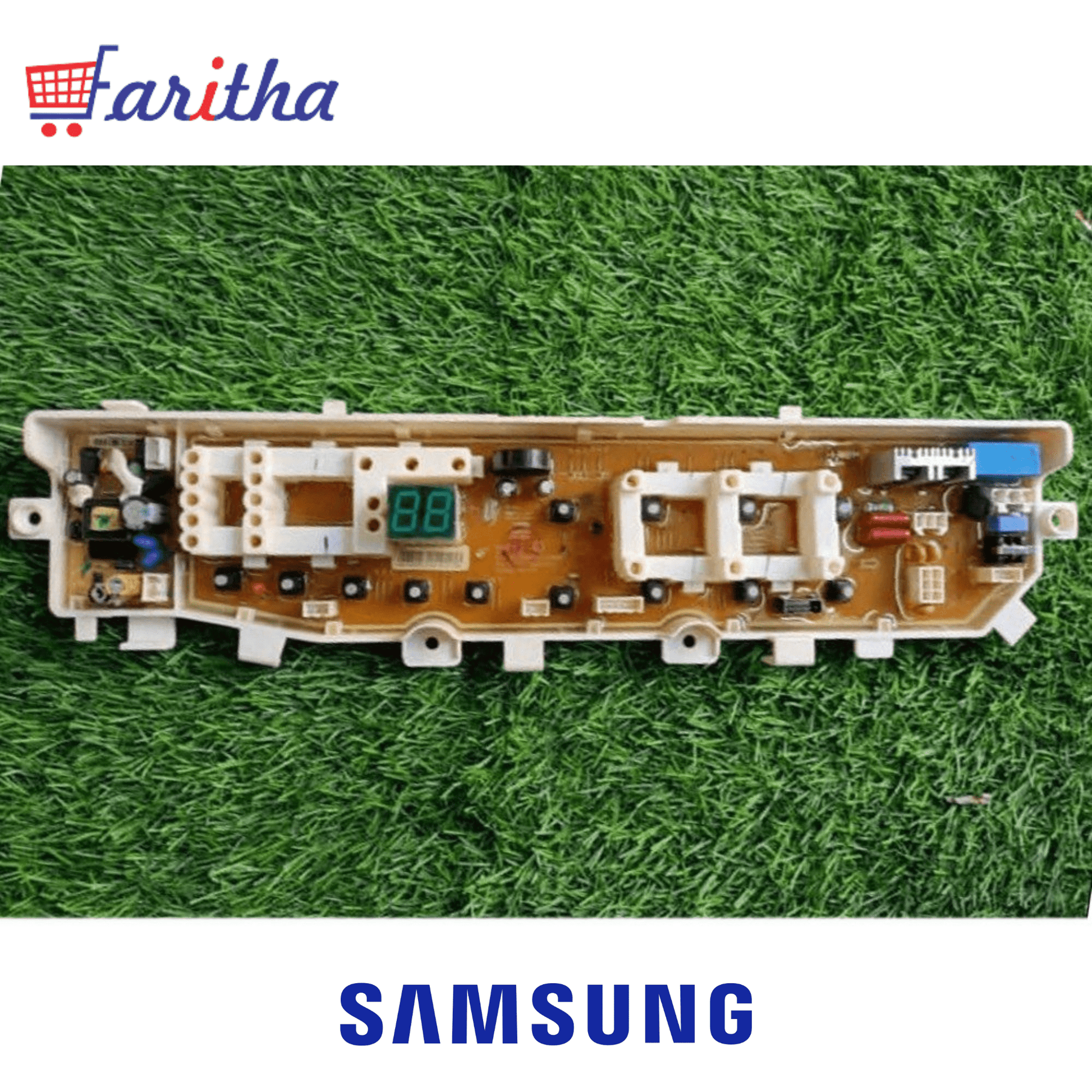

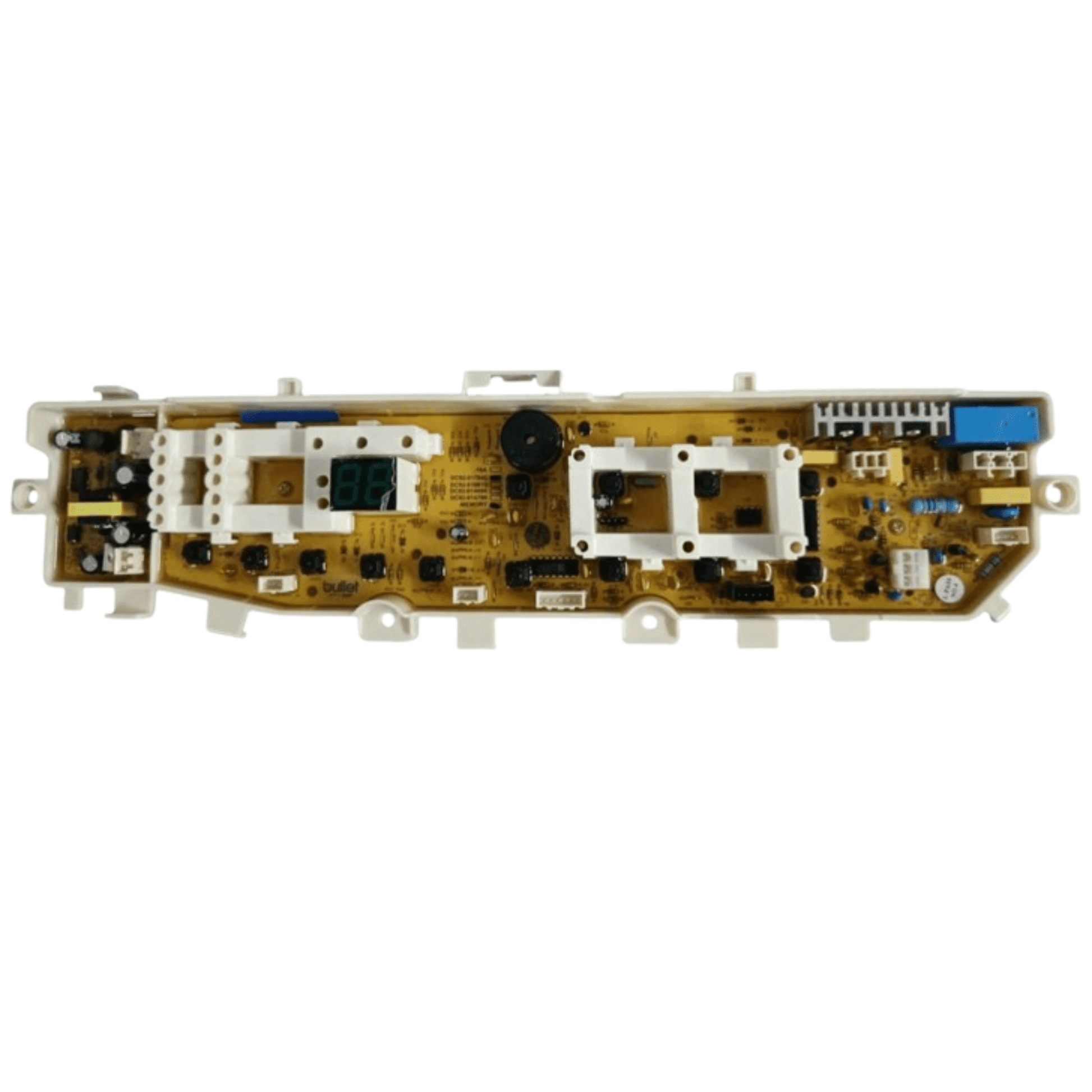

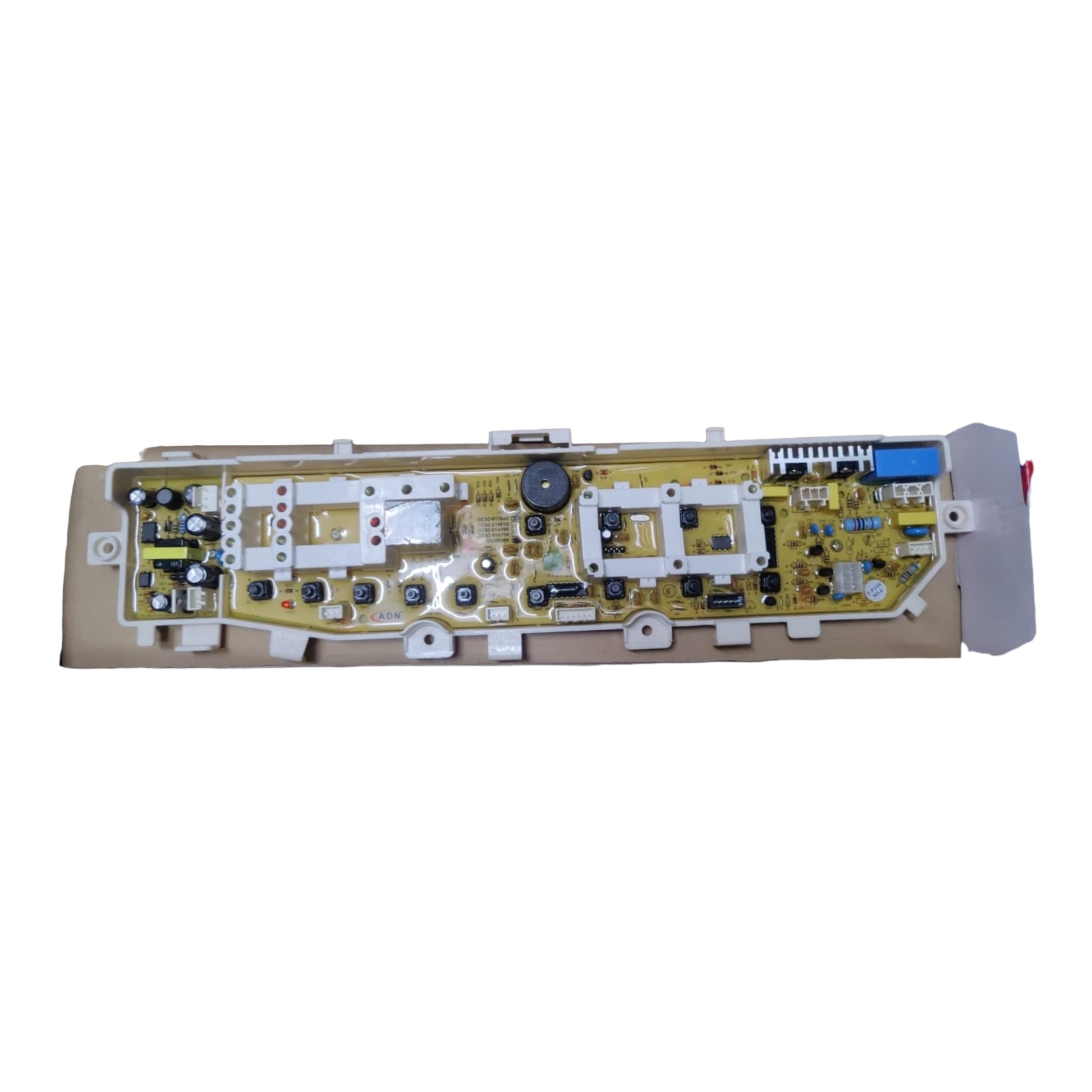

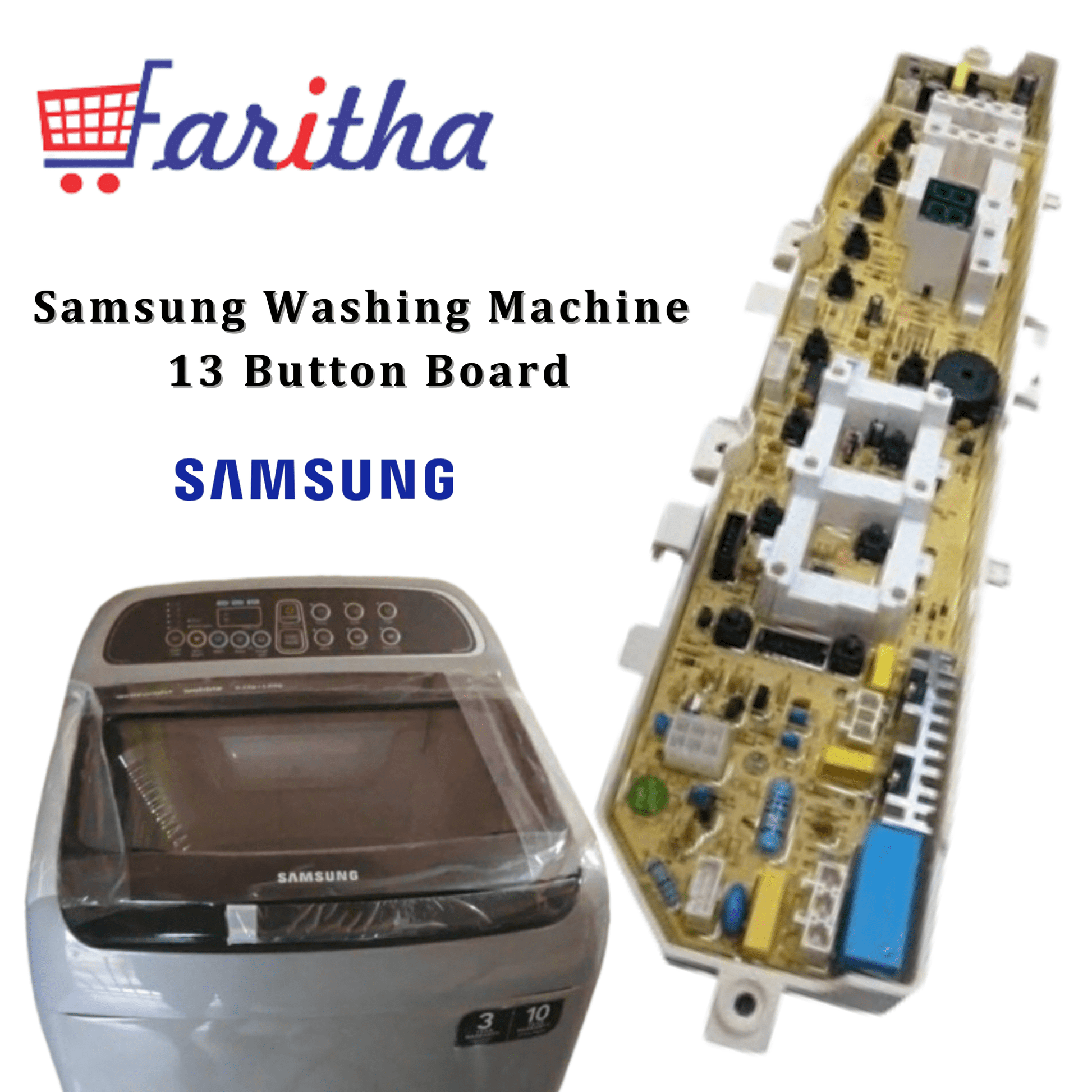

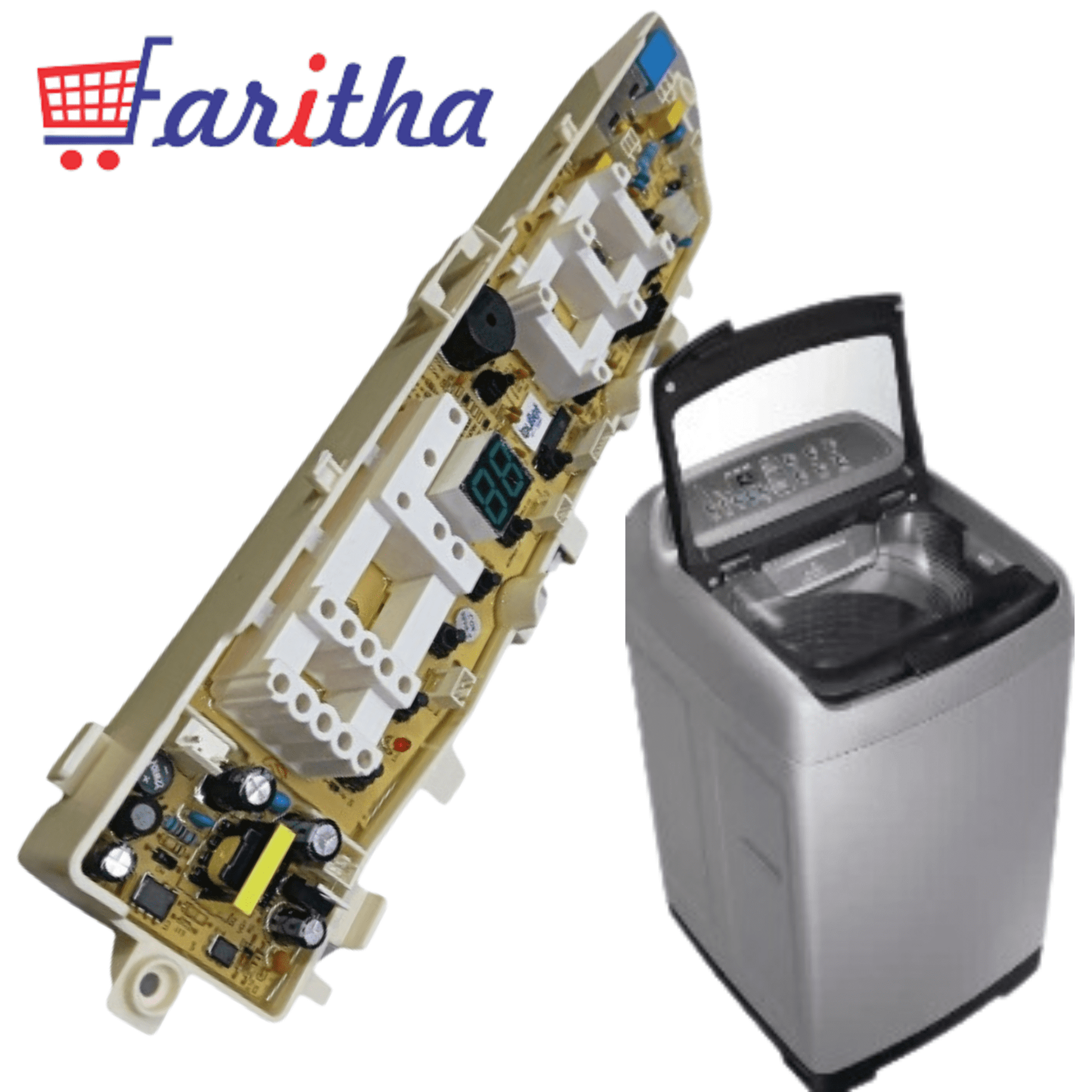

Complete Technical Specifications of Samsung 13-Button PCB Board

Key Features of This Samsung 13-Button PCB Board

1. 100% Original Samsung OEM Component — Guaranteed Authentic

This is a genuine original Samsung equipment manufacturer PCB board — recovered from decommissioned Samsung semi-automatic washing machines, not a generic aftermarket board, not a Chinese imitation, and not a defective used board. Authentic Samsung components ensure perfect compatibility with Samsung's proprietary button mapping algorithms, voltage requirements, motor control sequences, and solenoid valve timing. Every detail of the circuit design, component selection, and micro-processor programming matches Samsung's original specifications exactly — guaranteeing flawless integration and reliable operation.

2. 13-Button Full Function Control — Complete Wash Programme Selection

All 13 individual buttons fully functional covering: Wash Selection (5 buttons): Gentle Wash (delicate fabrics, reduced spin, minimal agitation), Normal Wash (everyday cotton clothing, balanced agitation/spin), Heavy Wash (stubborn stains, extended soak, maximum agitation), Cotton Programme (100% cotton optimized cycle with extended wash duration), Synthetic Programme (polyester/blended fabric optimized with lower temperature and spin). Rinse Selection (3 buttons): 1-Rinse (water conservation mode, single rinse cycle), 2-Rinse (standard mode, two rinse cycles), 3-Rinse (heavily soiled loads requiring maximum rinsing). Control Functions (5 buttons): Wash Start (initiates wash cycle with water inlet), Wash Stop/Pause (stops wash without draining, allows resume), Spin Start (begins independent spin cycle), Spin Stop (halts spinning while water remains), Drain (empties water without spinning). Every single button has been individually tested for reliable electrical response before dispatch.

3. AAA Grade Refurbishment — Comprehensively Tested & Verified

Each Samsung PCB board undergoes meticulous pre-dispatch testing: Button Contact Response Testing: All 13 buttons pressed 100+ times each to verify consistent electrical signal generation. Circuit Continuity Testing: Copper traces and solder joints verified for proper conductivity using multimeter continuity testing across all circuits. Voltage Delivery Testing: Proper voltage delivery verified to solenoid valves (12V DC typically), motor control circuits (220V AC), and timer circuits. Connector Strength Testing: All wire attachment points inspected for secure terminal connection and proper amperage handling (rated for 10A+ current). Final Load Testing: Board connected to actual washing machine motor and solenoid loads to simulate real-world operation under full electrical load for 30-minute extended test cycle.

4. Compatible with Popular Samsung WT Series Semi-Automatic Models

This 13-button PCB board is compatible with Samsung WT70M, WT80M, WT90M, and similar 13-button control panel models manufactured 2012-2020. Model numbers usually appear on the machine body sticker. Confirm your machine model before ordering by checking the model sticker location (typically on the back or side of the machine). WhatsApp a photo of your control panel to +91-7010973253 for instant model verification before purchase — ensuring you order the correct board.

5. Direct Replacement — No Modifications or Expertise Required

This PCB board is a direct plug-and-play replacement for your existing board. Your existing wire harness, button panel overlay, plastic enclosure, and machine cabinet require no modifications. Installation process: simply disconnect 4-5 wire connectors from the old board (5-minute task), position the new board in the same mounting location, and reconnect the same wires to matching terminals on the new board. No soldering, no electrical modifications, no special expertise required. Most customers complete installation in 20-30 minutes. If uncomfortable with electrical connections, any local technician can install for ₹300-500 service charge.

6. 12-Month Manufacturer Warranty — Comprehensive Coverage

AAA refurbished Samsung PCB boards carry full 12-month warranty against all manufacturing defects and performance failures. If the board fails to respond to any button input, malfunctions during normal operation, or shows any electrical fault within 12 months of purchase, Faritha replaces the board free of charge. Zero questions asked, zero deductible, zero additional costs. This warranty demonstrates Faritha's confidence in the board quality and AAA refurbishment standards.

7. Cost-Effective Alternative to Complete Machine Replacement

A new Samsung semi-automatic washing machine costs ₹18,000-25,000 delivered. This AAA refurbished PCB board costs only ₹2,748 — representing an **88% cost saving** compared to machine replacement. If your machine is otherwise functional (motor, solenoid valves, pump, structural frame in good condition), replacing only the failed PCB board restores your machine to full working condition and extends its lifespan an additional 8-12 years at minimal cost. Environmental benefit: extends machine lifespan by years instead of adding non-biodegradable electronics to landfill waste.

8. Fast Same-Day Delivery in Madurai — No Long Waiting Times

Order before 2 PM today and receive the PCB board same-day within Madurai delivery limits. Next-day delivery guaranteed for all Tamil Nadu locations. Why wait 2-4 weeks for parts through Samsung service centers? Faritha maintains this critical component in well-stocked inventory for immediate dispatch.

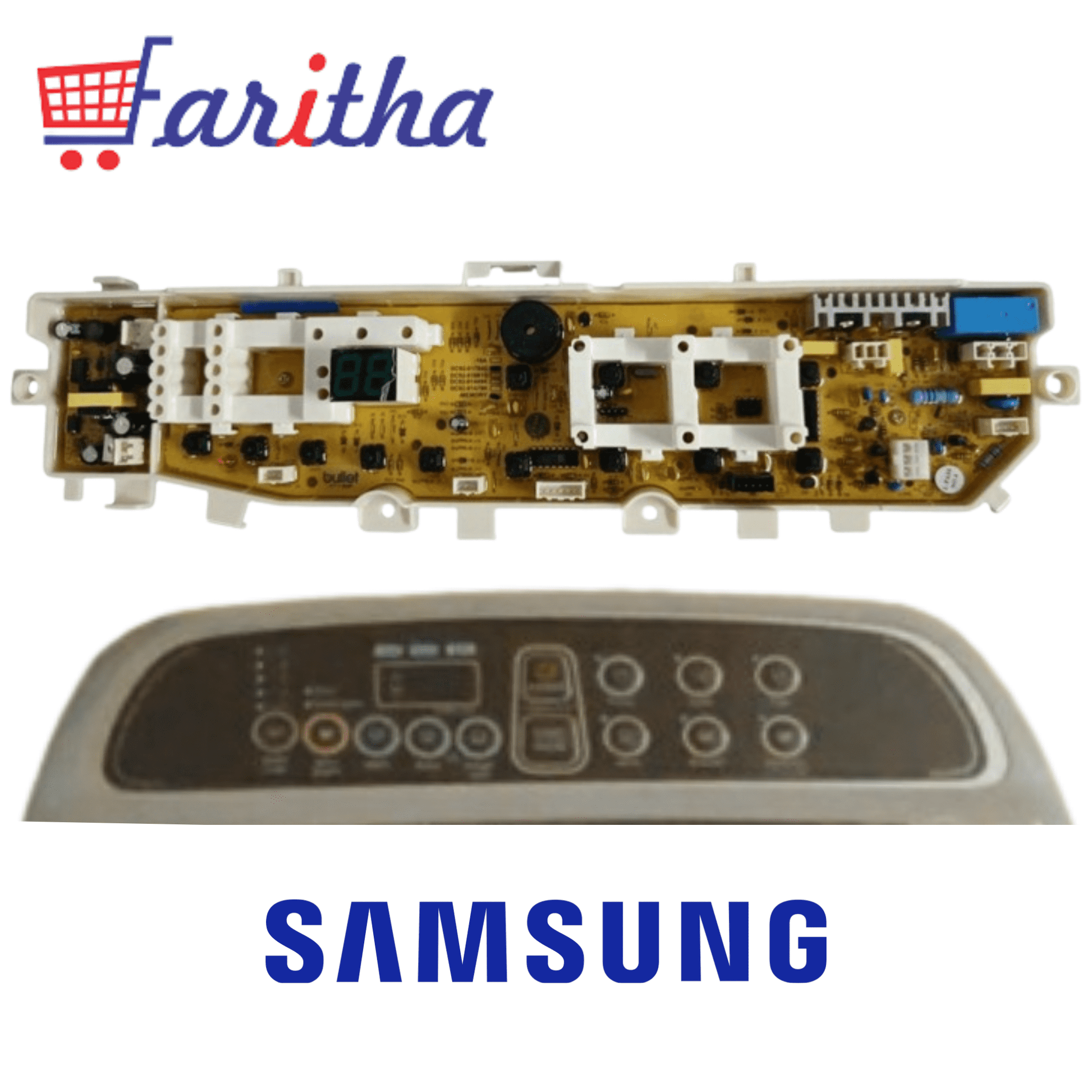

Detailed 13-Button Function Reference & Mapping

WASH SELECTION BUTTONS (Group 1 - 5 buttons): These buttons select the wash intensity and fabric type, determining agitation speed, wash duration, and spin intensity. Gentle Wash Button: Reduced agitation speed (300 RPM), minimal tumbling action, extended wash duration (20-25 minutes), slow spin (600 RPM) — ideal for delicate fabrics (silks, satins, wool blends). Normal Wash Button: Standard agitation (500 RPM), balanced wash duration (15-18 minutes), standard spin (800 RPM) — suitable for everyday cotton clothing. Heavy Wash Button: Maximum agitation (700 RPM), extended soak period (5 minutes pre-wash), extended wash duration (25-30 minutes), high spin (1000 RPM) — designed for heavily soiled loads. Cotton Programme Button: Specialized cycle for 100% cotton fabrics with optimized temperature, extended wash duration for superior cleaning. Synthetic Programme Button: Optimized for polyester, polyester-cotton blends, and synthetic fabrics with lower temperature and reduced spin intensity.

RINSE SELECTION BUTTONS (Group 2 - 3 buttons): These buttons control how many rinse cycles occur after the main wash, determining water usage and soap residue removal. 1-Rinse Button: Single rinse cycle (water conservation mode), suitable for lightly soiled loads. 2-Rinse Button: Standard two rinse cycles (most common selection, provides balanced cleanliness and water usage). 3-Rinse Button: Three rinse cycles (heavy soiling, maximum soap residue removal, recommended for heavily soiled items).

CONTROL BUTTONS (Group 3 - 5 buttons): These buttons manage the actual operation of the wash cycle. Wash Start Button: Initiates wash cycle — opens water inlet solenoid, activates motor, begins agitation sequence. Wash Stop/Pause Button: Pauses the wash cycle without draining water — stops motor and agitation, can be resumed by pressing Wash Start again. Spin Start Button: Begins the spin cycle — activates motor at high speed (800-1000 RPM) to wring water from clothes. Can be used independently to spin dry without washing. Spin Stop Button: Halts spinning while water remains in tub — stops motor immediately. Drain Button: Empties water from tub without spinning — opens drain solenoid valve, allows gravity drainage to complete.

Complete Installation & Replacement Guide (5 Steps)

Step 1: Unplug and Drain the Machine Safely

Turn off electricity to the washing machine by switching off the wall socket or circuit breaker. Allow the machine to sit for 5-10 minutes to dissipate any residual electrical charge stored in capacitor circuits. Open the drain hose at the bottom front of the machine and empty any trapped water into a bucket. This step is critical for safety — working on an energized board can cause electrical shock.

Step 2: Access the Control Panel and Photograph Current Wiring

Most Samsung semi-automatics have the PCB board located behind the control panel area or on the side of the machine body. Remove the plastic cover/trim piece (usually held by 4-6 Phillips head screws) to access the PCB location. IMPORTANT: Before disconnecting any wires, take a clear photograph of the current wire connections showing which colored wires connect to which terminals. This photo serves as your critical reference for reconnection — ensuring no wires are misconnected.

Step 3: Carefully Disconnect the Old PCB Board

Slowly and carefully disconnect all wire connectors from the old PCB board. Do not pull on wires — grasp the connector plug itself and gently wiggle while pulling. Label each wire with masking tape and a marker if wires are not color-coded. Gently remove the old board from its mounting bracket using a Phillips head screwdriver (usually 2-3 screws hold the board in place).

Step 4: Install the New Samsung PCB Board

Remove the new AAA refurbished Samsung PCB board from packaging. Inspect for any visible damage. Insert the new board into the same mounting bracket location (may require slight adjustments for proper fit). Align all connector positions to match the wire locations visible from your reference photo. Reconnect each wire to the exact same terminal position on the new board using your photograph as reference. Double-check that all connections are secure and that no wires are pinched under the board or mounting brackets.

Step 5: Test All Functions Before Final Assembly

Plug the machine back into electrical socket. Without water, systematically press each of the 13 buttons one by one to verify electrical response (you should hear the motor engage, solenoid valve click, or timer activate for each button). Then perform a complete test wash cycle with water to confirm the board properly controls motor speed, water flow timing, and cycle duration. Once verified, reassemble the protective cover and you're done.

Key Benefits of Choosing Faritha for Samsung PCB Boards

✓ 100% Authentic Samsung OEM Parts: Every board is a genuine original Samsung component, recovered from functional machines, not aftermarket or counterfeit. Full authenticity verification available.

✓ AAA Grade Refurbishment Standards: Comprehensive testing covering button response, circuit continuity, voltage delivery, connector strength, and load testing. Every board functions at 100% before dispatch.

✓ 12-Month Manufacturer Warranty: Full warranty on all manufacturing defects and performance failures. Defective board? Replaced free within 12 months, zero questions asked.

✓ Same-Day Delivery in Madurai: Order before 2 PM → Receive same day within Madurai. Next-day delivery guaranteed for Tamil Nadu. No waiting for weeks through service centers.

✓ Expert Model Verification Service: Before purchasing, WhatsApp your machine model number or control panel photo to +91-7010973253. Confirm compatibility instantly — no risk of wrong orders.

✓ 24/7 WhatsApp Customer Support: Questions about compatibility, installation, warranty, or technical specifications? Text +91-7010973253 anytime. Expert responses within 15 minutes, including weekends.

Frequently Asked Questions About Samsung PCB Boards

Q: How do I know if this is the correct PCB board for my machine?
A: Check your machine control panel carefully. Count the buttons — if you see exactly 13 buttons arranged in three distinct groups, this is likely your match. Check your model number on the sticker affixed to the machine body (usually on the back or side). The model number format is typically WTxxxx (WT70M, WT80M, WT90M, etc.). WhatsApp your model number or a clear photo of your control panel to +91-7010973253 for instant confirmation before ordering.

Q: What is the difference between AAA refurbished and new OEM boards?
A: Both are 100% functional with identical 12-month warranty coverage. AAA refurbished boards (₹2,748) are genuine Samsung originals professionally tested and verified — offering 88% cost savings compared to new OEM boards (₹6,500-8,000) from Samsung service centers, while delivering essentially identical reliability and performance.

Q: Can I install this board myself without professional help?
A: Yes! Installation is straightforward — disconnect old board (5 minutes), connect new board to same wire terminals (5 minutes), test 13 buttons (5 minutes). Total time: 20-30 minutes. If you're uncomfortable with electrical connections, any local technician can install for ₹300-500 service charge.

Q: Will this 13-button board work with fully automatic Samsung washing machines?
A: No, this board is specifically for semi-automatic twin-tub machines only. Fully automatic machines use completely different PCB boards with different button configurations and voltage requirements. WhatsApp your machine type for the correct board recommendation.

Q: How long can I expect this refurbished board to last?
A: With proper surge protection and normal care, AAA refurbished Samsung PCB boards typically last 8-12 years. Most customers report 10-11 years of reliable operation before considering replacement. Your machine's longevity depends on stable electrical supply (use a surge protector) and keeping the board dry (maintain proper water seals).

Q: What's the difference between 7-button, 12-button, and 13-button Samsung boards?
A: Samsung used different button configurations across different model years and market segments. 7-button boards are for budget/basic models (2006-2016), 12-button boards for mid-range models (2008-2018), and 13-button boards for feature-rich semi-automatic models (2012-2020). Count your control panel buttons carefully to ensure correct board selection.

Real Customer Testimonials — Verified Reviews

⭐⭐⭐⭐⭐ Mridula Iyer, Madurai: My Samsung WT washing machine was completely dead! The board brought it back to life like magic! Same-day delivery! All 13 buttons working perfectly! Highly recommend Faritha! Saved me from buying a new machine!

⭐⭐⭐⭐⭐ Suresh Krishnan, Chennai: Excellent genuine Samsung PCB board! AAA quality! Installation was straightforward! My machine works like new again! Best value repair compared to Samsung service center! Recommended to all my friends and family!

⭐⭐⭐⭐⭐ Anjali Sharma, Bangalore: Perfect replacement board! All 13 buttons respond flawlessly! Saved hundreds compared to buying a new washing machine! Excellent customer support! Will definitely buy here again!

Restore Your Samsung Semi-Automatic Washing Machine Today

Samsung Washing Machine PCB Board 13-Button AAA Refurbished Original — ₹2,748. Comprehensively tested. 12-month warranty. Same-day delivery Madurai, next-day delivery Tamil Nadu.

Don't replace your entire semi-automatic washing machine for a failed control board. Restore your machine's complete functionality, extend its service life 8-12 years, and save ₹15,000-22,000 compared to machine replacement.

Order right now and get same-day delivery in Madurai!

Need model confirmation? WhatsApp anytime: +91-7010973253 (24/7)
