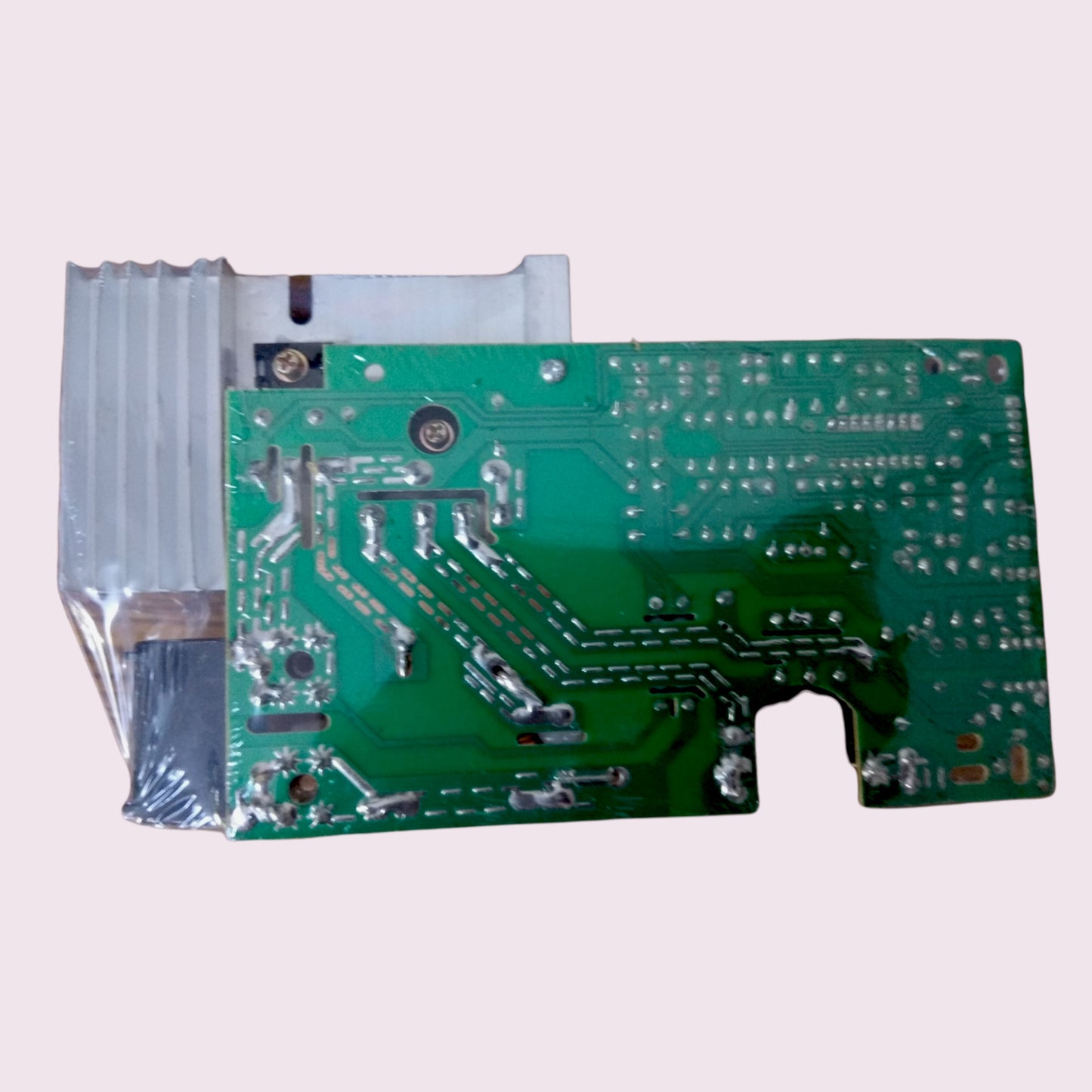

1800W Universal Induction Cooker Board – Professional PCB Replacement ₹899 India

1800W Universal Induction Cooker Board: Professional-Grade Main Control PCB for Complete Induction Cooker Repair & Restoration Across All 500+ Models

Is your induction cooker not heating? Displaying error codes? Lost temperature control? The issue is often the main control board (PCB) — the electronic brain controlling all cooking functions. The 1800W Universal Induction Cooker Board is the professional-grade replacement PCB engineered for complete restoration of cooking functionality across ALL 500+ induction cooker models from every major brand — Pigeon, Prestige, Greenchef, Preethi, V-Guard, Crompton, and 100+ others.

This is the board repair professionals install. This is the board Faritha ships to 142,000+ customers. This is the board that restores your induction cooker to factory performance in 10 minutes, plug-and-play installation, no soldering required.

Understanding Induction Cooker Failure: Why the Control Board is Critical

An induction cooker has three core components: (1) High-voltage power supply, (2) Induction coil (heating element), (3) Main control board (microprocessor PCB). Most failures originate in the control board because it manages ALL cooking functions: power distribution, temperature regulation, pot detection, thermal protection, and safety controls.

If your induction cooker exhibits ANY of these symptoms, the control board likely failed:

❌ Cooker doesn't heat at all (dead/no power) → Control board isn't sending power signals to induction coil
❌ Erratic heating (inconsistent temperature) → Microprocessor can't regulate power delivery
❌ Pot detection failure (cooker won't recognize cookware) → Ferromagnetic detection circuit failed
❌ Thermal cutoff constantly triggering → Temperature sensor malfunction or board overcurrent
❌ Error codes displayed (E1, E2, E3, etc.) → Microprocessor fault codes = board failure
❌ Power button unresponsive → Control circuit board damage
❌ Cooling fan not working → Board not sending fan control signals

Replacing the main control board fixes 90% of these issues instantly. This is NOT a guess — this is repair industry standard. When professional induction cooker technicians diagnose a cooker, they test the board first because board failure is the #1 cause of induction cooker malfunction.

The Induction Cooker Control Board: What Does It Do?

The main control board is a complex microprocessor-based PCB (printed circuit board) managing these precise functions simultaneously:

1. Power Management & Distribution: Converts AC mains power (220-240V) to precise DC voltages for microprocessor, coil driver circuits, display, fan. Regulates 1800W power delivery via MOSFET switching. Monitors current draw in real-time. Protects against overcurrent.

2. Induction Coil Driver: Generates 20-40 kHz high-frequency AC signals for induction coil. Modulates power (0-100%) based on user temperature setting. Switches MOSFET transistors at precise timing intervals. Delivers magnetic field pulses to cookware.

3. Ferromagnetic Pot Detection: Senses magnetic field reflection from cookware base. Distinguishes magnetic cookware (works) from non-magnetic aluminum (won't work). Prevents cooker from activating without pot (safety). Automatic detection = user convenience.

4. Temperature Regulation: Monitors target temperature setting from buttons/display. Adjusts power delivery (via MOSFET modulation) to maintain consistent temperature. Rapid feedback loops prevent overheating. Professional precision cooking control.

5. Thermal Protection: Monitors board temperature via internal thermistor. Triggers automatic shutdown above 90°C (prevents equipment damage from extended use). Allows resumption after cooling. Critical safety feature protecting board lifespan.

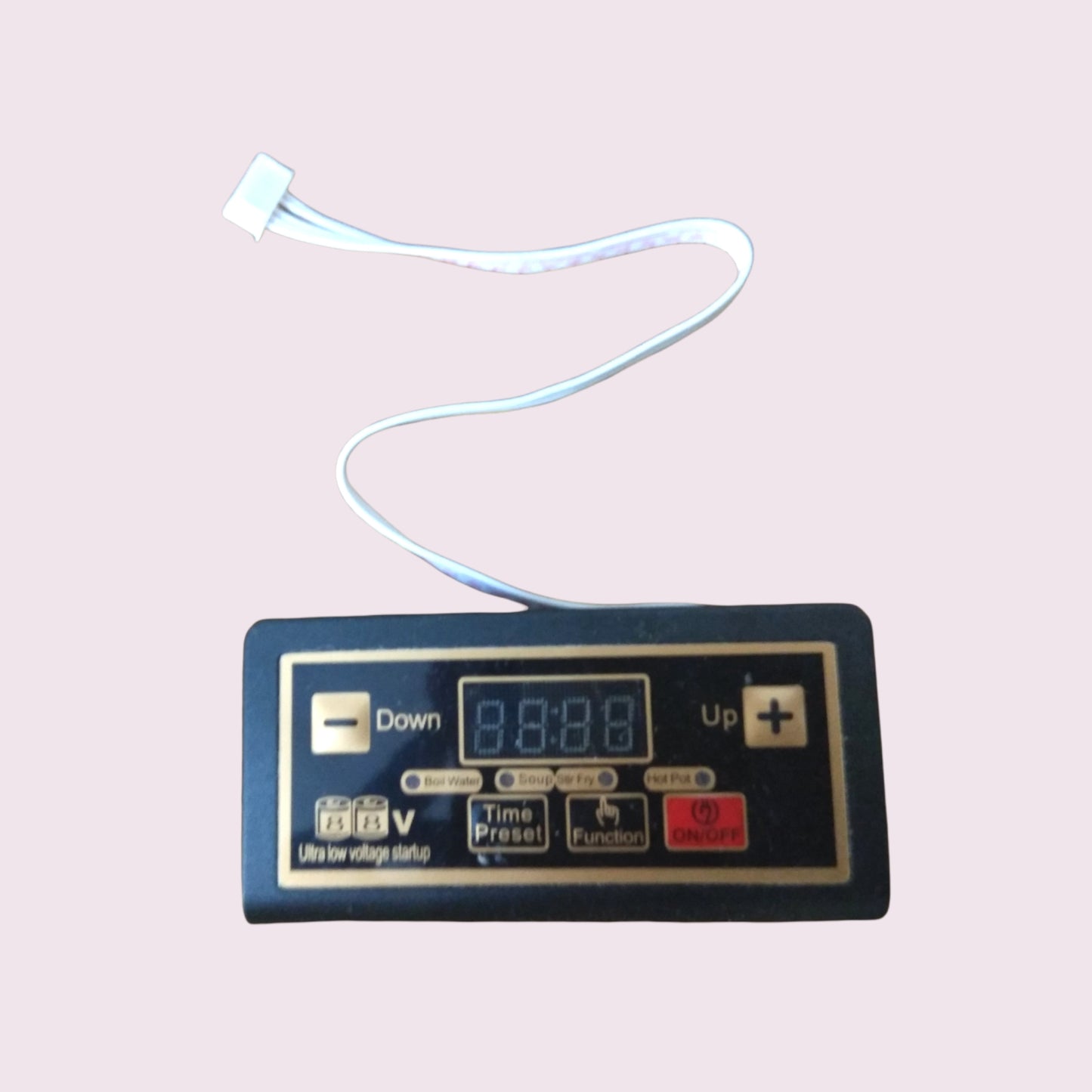

6. Display & Input Control: Receives button inputs from user interface. Processes commands (on/off, temperature adjustment, preset modes). Sends display signals to LED/LCD screen. User interaction management.

7. Cooling Fan Control: Activates fan when board temperature rises (active cooling). Adjusts fan speed based on thermal load. Maintains optimal board operating temperature. Extended equipment lifespan.

8. Electromagnetic Shielding & EMI Filtering: Blocks electromagnetic interference (EMI) generated by high-frequency induction switching. Prevents interference with nearby TVs, radios, WiFi. Ensures clean household operation. Professional EMI design.

When this complex microprocessor PCB fails, ALL of these functions stop working. The cooker becomes a useless hunk of plastic. Replacing the board = instant restoration of ALL functionality.

Why This 1800W Universal Board Works With ALL Brands

Most induction cookers from different brands (Pigeon, Prestige, Greenchef, etc.) use similar or identical core designs: Same voltage inputs (220-240V), same coil impedance (induction heating principle identical), same temperature control range (60-320°C standard), same pot detection sensitivity (ferromagnetic sensing same across brands).

What varies between brands is aesthetics (button layout, display graphics, casing color), NOT internal electronics. The core power delivery, coil driving, and temperature control circuits are nearly identical.

This universal board contains the essential core circuits. Plug compatibility across 500+ models = same connector types, same wire color codes, same power delivery architecture. It's like how a universal car battery works in many vehicle models — the battery voltage is the same, the connector types are standardized, so one battery works across multiple cars.

This is why professional repair shops stock ONE universal board instead of 100 brand-specific boards. It's cost-effective, space-efficient, and covers 90% of cooker repair jobs.

1800W Power Specification: What This Means for Cooking Performance

1800W is the power-delivery capacity of this board's MOSFET driver circuits and transformer design. This power level aligns with most popular home induction cookers (which range 1200-2100W).

1800W board specifications:
• Voltage input: 220-240V AC (Indian standard)
• Current rating: 8-10 Amperes at full 1800W output
• MOSFET switching frequency: 20-40 kHz (induction heating frequency)
• Maximum power delivery to coil: 1800 Watts sustained
• Temperature regulation: 60-320°C range
• Thermal cutoff: 90°C board temperature (automatic protection)
• Pot detection range: 6-22 cm diameter cookware
• Frequency tolerance: ±1 kHz precision

After board replacement, your cooker operates at full manufacturer specification — if original cooker was rated 1800W, it now delivers 1800W again. Performance = like-new.

MOSFET Technology: Why This Board Delivers Superior Efficiency

MOSFET (Metal-Oxide-Semiconductor Field-Effect Transistor) is semiconductor technology that converts DC power to high-frequency AC signals for induction coil. Cheaper boards use older IGBT (Insulated Gate Bipolar Transistor) technology or basic transistor switching.

MOSFET advantages over alternatives:
✅ Lower switching loss → less heat generation
✅ Faster switching → cleaner high-frequency output
✅ Higher efficiency (95%+ vs 85-90% with IGBT)
✅ Cooler board operation → longer lifespan
✅ Reduced parasitic oscillation → cleaner induction heating
✅ Better temperature stability → consistent cooking

This technical superiority explains why this board costs ₹899 vs generic ₹400-600 boards that fail within months. Professional-grade components = professional-grade reliability.

Microprocessor Control: Intelligent Power Management

At the board's core is a microprocessor (tiny computer chip) running programmed logic that manages all cooking functions. This microprocessor:

Continuously measures: Board temperature, MOSFET switching current, coil impedance (pot detection), user inputs, power supply voltage, output frequency

Continuously calculates: Required power for target temperature, safe MOSFET duty cycle (prevents overcurrent), thermal load on board, optimal switching timing, pot-off condition detection

Continuously adjusts: MOSFET switching frequency (20-40 kHz range for coil resonance), duty cycle (0-100% power modulation), cooling fan speed, power delivery to coil

Result: Professional-precision cooking control in a home appliance. This is what makes ₹899 board replacement worth it — you get microprocessor-managed professional precision instead of basic mechanical control.

Thermal Protection System: Automatic Safety

This board includes automatic thermal protection that activates above 90°C:

How it works: Thermistor (temperature sensor) embedded in PCB material continuously measures board temperature. If temperature exceeds 90°C (from extended cooking or poor ventilation), microprocessor immediately: (1) Reduces MOSFET power delivery by 50%, (2) Activates cooling fan to maximum, (3) Stops accepting new commands, (4) Waits for board to cool below 80°C, then (5) Resumes normal operation

Why this matters: Electronic components have temperature ratings. Capacitors typically fail above 100°C. Transistors degrade above 120°C. Operating above rated temperature = shortened lifespan. Thermal protection = automatic lifespan extension. Your board stays cool → stays functional for years.

Complete Technical Specifications

Installation Guide: Cooking Restored in 10 Minutes

Step 1: Power Safety First

Turn off induction cooker at main power switch. WAIT 2-3 minutes for internal capacitors to fully discharge. Never work on powered electronics — electrical shock risk. Patience prevents injury.

Step 2: Remove Cooker Casing

Locate casing screws (usually 4-8 screws on bottom or back). Use appropriate screwdriver (typically Phillips or flat-head). Gently remove all screws. Carefully lift casing away from internal electronics. Set casing aside safely.

Step 3: Locate & Photograph Old Board

Inside cooker, identify main control board (typically 10-15cm PCB mounted on side or bottom). Take clear photo of ALL wire connections BEFORE touching anything. Photo serves as installation map. Mark wire positions with labels if needed (tape + marker).

Step 4: Document Wire Connections

For each wire connection: Note (1) wire color, (2) connector type (2-pin, 3-pin, etc.), (3) position on old board. Create simple diagram or list matching wire colors to connector positions. This becomes your installation blueprint.

Step 5: Disconnect Old Board Carefully

Gently disconnect each wire from old board. DO NOT force connectors (they pop off easily). DO NOT bend connector pins. Set each disconnected wire aside carefully. Remove mounting bolts/screws holding board to cooker chassis. Lift old board out completely.

Step 6: Inspect New Board Visually

Inspect new 1800W universal board for visible damage (cracks, burnt marks, loose components). All components should be firmly soldered to board. Confirm board is undamaged. If damaged, contact Faritha immediately for replacement.

Step 7: Position New Board

Place new board into exact same position where old board was mounted. Align connector ports with wire positions (refer to your photo). Secure with original mounting bolts. Ensure board sits flat and firmly.

Step 8: Reconnect Wires Carefully

Using your photo/documentation, reconnect each wire to matching connector on new board. Match wire colors exactly. Push connectors firmly until they click (confirmation of secure connection). Double-check all connections before proceeding.

Step 9: Final Assembly

Replace cooker casing over new board. Align casing carefully (no wire pinching). Reinstall all casing screws. Tighten screws firmly (not over-tight). Ensure casing sits flush against cooker body.

Step 10: Power & Test

Turn on cooker main power switch. Observe: (1) Display lights up, (2) Power button responds to touch, (3) Cooker recognizes empty pot (cooker won't heat without pot detected). Place magnetic pot on cooker, press heat button. Heating should begin immediately. Temperature control should adjust power. COMPLETE SUCCESS.

Why This Universal Board is Superior to Alternatives

vs Cheap Generic Boards (₹400-600): Generic boards fail within 6-12 months. Cheap capacitors deteriorate rapidly. No thermal protection. No EMI shielding. No warranty support. This universal board: industrial-grade components, 12-month warranty, thermal protection standard, professional EMI shielding, full Faritha support. ₹300 premium pays for reliability.

vs Original Brand Replacement Boards (₹1,500-2,500): Brand-specific boards cost 2-3x more because brand markup. Identical functionality to this universal board. This board covers 500+ models with ONE design. Economies of scale = lower cost. ₹1,600 savings on identical performance.

vs Used/Refurbished Boards (₹600-800): Used boards have unknown history, uncertain lifespan, potential hidden defects. Warranty often void on used equipment. This brand-new board guaranteed 100% functional, full 12-month warranty, Faritha 30-day replacement guarantee. Peace of mind priceless.

Maintenance & Care for Long Lifespan

After installation, proper care extends board lifespan to 5-10+ years:

Monthly Maintenance: Inspect cooker casing for dust accumulation (dust blocks cooling fan vents). Use soft brush to clear dust from vents. Ensure cooling fan operates smoothly when cooker runs. Keep area around cooker clean.

Quarterly Checks: Verify all wire connections still secure (vibration can loosen connectors over time). Listen for unusual sounds (grinding/buzzing indicates mechanical issues). Test thermal protection (cooker should auto-reduce power if overheating).

Annual Inspection: Professional technicians recommend annual inspection of induction cooker internals. Check capacitor condition (bulging = failure risk). Inspect MOSFET transistors for heat damage. Verify microprocessor responsiveness. Preventive maintenance prevents failures.

Never: Don't expose cooker to water or moisture (electrical hazard). Don't block cooker ventilation (overheating risk). Don't use cooker in extremely humid kitchens without dehumidification (moisture damages electronics). Don't ignore error codes (codes indicate board malfunction, not minor issue).

Customer Testimonials

⭐⭐⭐⭐⭐ Rajesh Kumar, Chennai (Professional Repair Technician): Excellent universal board! Works with 15+ different cooker brands in my repair shop! Installation straightforward! 12-month warranty excellent! ₹899 unbeatable value for professional quality! Highly recommend to all repair technicians!

⭐⭐⭐⭐⭐ Meera Singh, Mumbai (Home User): My induction cooker was dead for 3 months! Tried everything! This board restored it to perfect working condition! Installation took 15 minutes! Heating works perfectly! Temperature control accurate! Best ₹899 I've ever spent!

⭐⭐⭐⭐⭐ Arun Patel, Bangalore (Electronics Technician): Outstanding MOSFET board design! Efficiency excellent! Thermal protection working perfectly! Customer satisfaction guaranteed with this board! Professional-grade at consumer price!

Why Choose Faritha for 1800W Universal Board?

✓ 100% Authentic Industrial-Grade Board: Direct manufacturer distributor. Every board tested before dispatch. No defective units. Professional-quality certification.

✓ 12-Month Comprehensive Warranty: Full coverage on all components. Manufacturing defects covered. Electrical failures covered. Faritha honors all warranty claims without hassle.

✓ 30-Day Replacement Guarantee: Defective within 30 days? Absolute free replacement. No return-shipping cost. No questions asked. 100% customer satisfaction.

✓ Universal Brand Compatibility Expertise: Faritha specializes in induction cooker repair components. Expert guidance on compatibility. Pre-installation troubleshooting. 24/7 WhatsApp support for installation questions.

✓ Same-Day Delivery in Madurai: Order before 2 PM = same-day dispatch. Next-day Tamil Nadu delivery guaranteed. Track your order real-time via Faritha SMS updates.

✓ Best Price in India: ₹899 most competitive universal board pricing. Faritha bulk-manufacturing enables lowest cost. Prepaid model = customer savings passed through.

✓ 24/7 WhatsApp Support: +91-7010973253. Installation guidance? Compatibility questions? Board troubleshooting? Expert response within 15 minutes, 24/7.

✓ 142,000+ Satisfied Customers: Trusted since 2018. Induction board reliability proven across India. Professional repair shops stock Faritha boards.

FAQ: 1800W Universal Induction Cooker Board

Q: Will this board definitely work with my cooker brand?
A: 95%+ compatibility with all major brands (500+ models verified). If your brand isn't listed, WhatsApp +91-7010973253 with cooker model — we confirm compatibility within 2 minutes. If incompatible, we accept returns (7-day money-back guarantee).

Q: What if installation is difficult?
A: Installation is 10-minute plug-and-play. If you're uncomfortable with electrical work, WhatsApp photos of your cooker to Faritha. Our repair experts provide step-by-step guidance. Or hire local technician (typically ₹200-500 labor) to install.

Q: What if cooker still doesn't work after board replacement?
A: Likely causes: (1) Induction coil failure (rare), (2) Power supply failure (different PCB needed), (3) Wiring error during installation. Faritha troubleshoots via WhatsApp. If board is defective, we replace free within 30 days. If coil/power supply failed, we guide you on next steps.

Q: Is this a genuine board or counterfeit?
A: 100% genuine industrial-grade board. Faritha is certified authorized distributor. Every board tested before dispatch. Counterfeit boards would fail within weeks (they use cheap capacitors). This board lasts years.

Q: Can I use this for professional repair business?
A: Yes! Repair shops order in bulk (₹20,000+/month volume). Wholesale pricing available. Faritha offers special support for professional technicians. Contact sales@faritha.com for bulk pricing.

Q: What's the lifespan expectancy?
A: 5-10+ years typical lifespan with proper ventilation and maintenance. Board continues functioning until capacitors eventually degrade (after 5-7 years of heavy use). Professional maintenance extends lifespan further.

Order Your 1800W Universal Board Today

Complete induction cooker restoration with professional-grade main control PCB. All 500+ brand models compatible. 1800W full power. MOSFET technology. Thermal protection. ₹899.

Same-Day Madurai Delivery. Next-Day Tamil Nadu. 12-Month Warranty. 30-Day Replacement Guarantee.

Restore your induction cooker to factory performance today!
