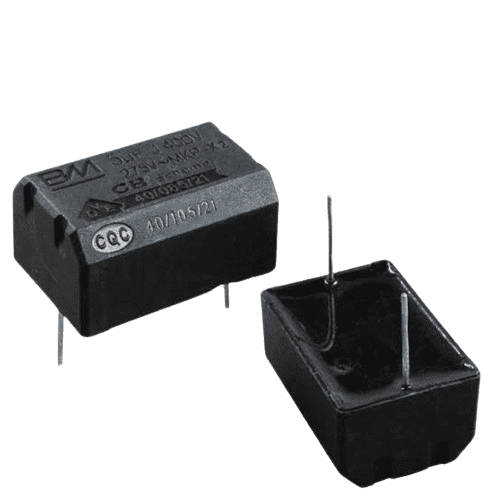

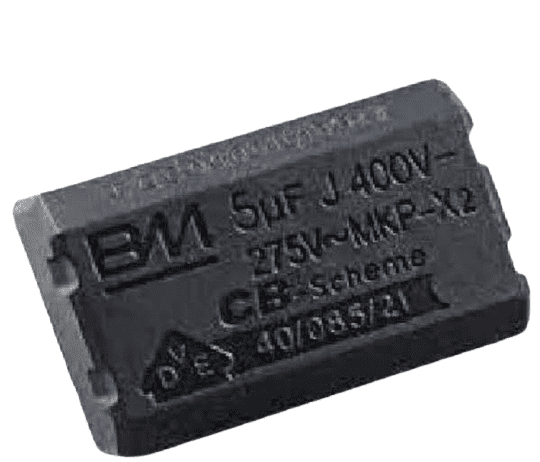

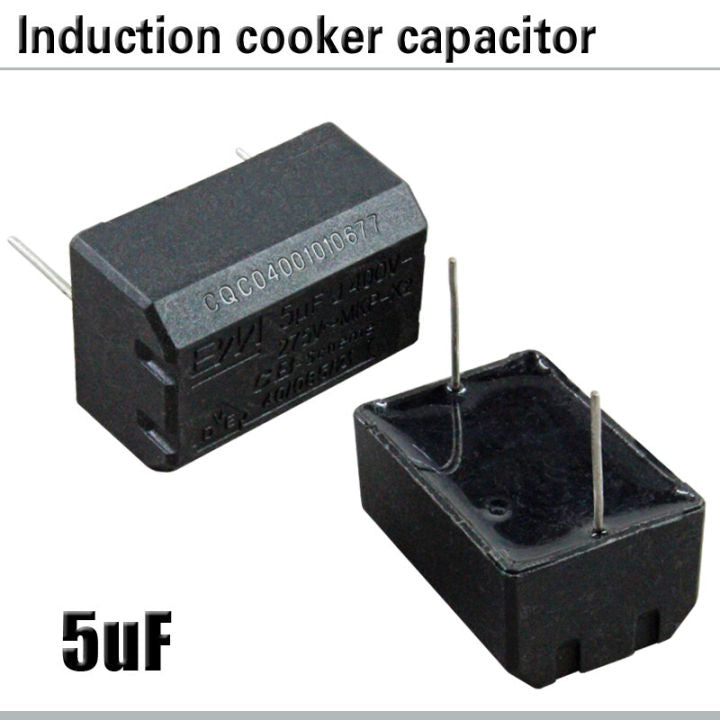

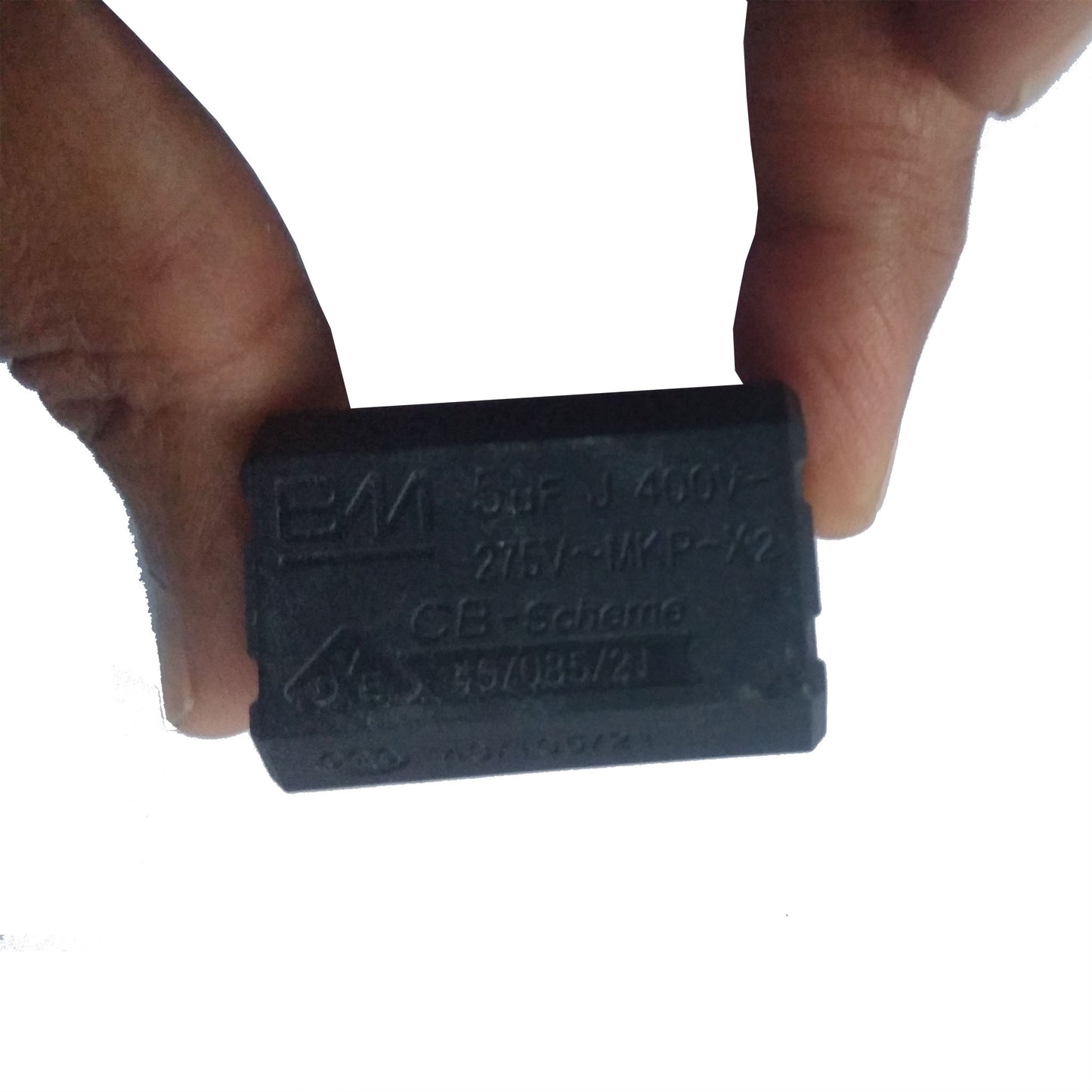

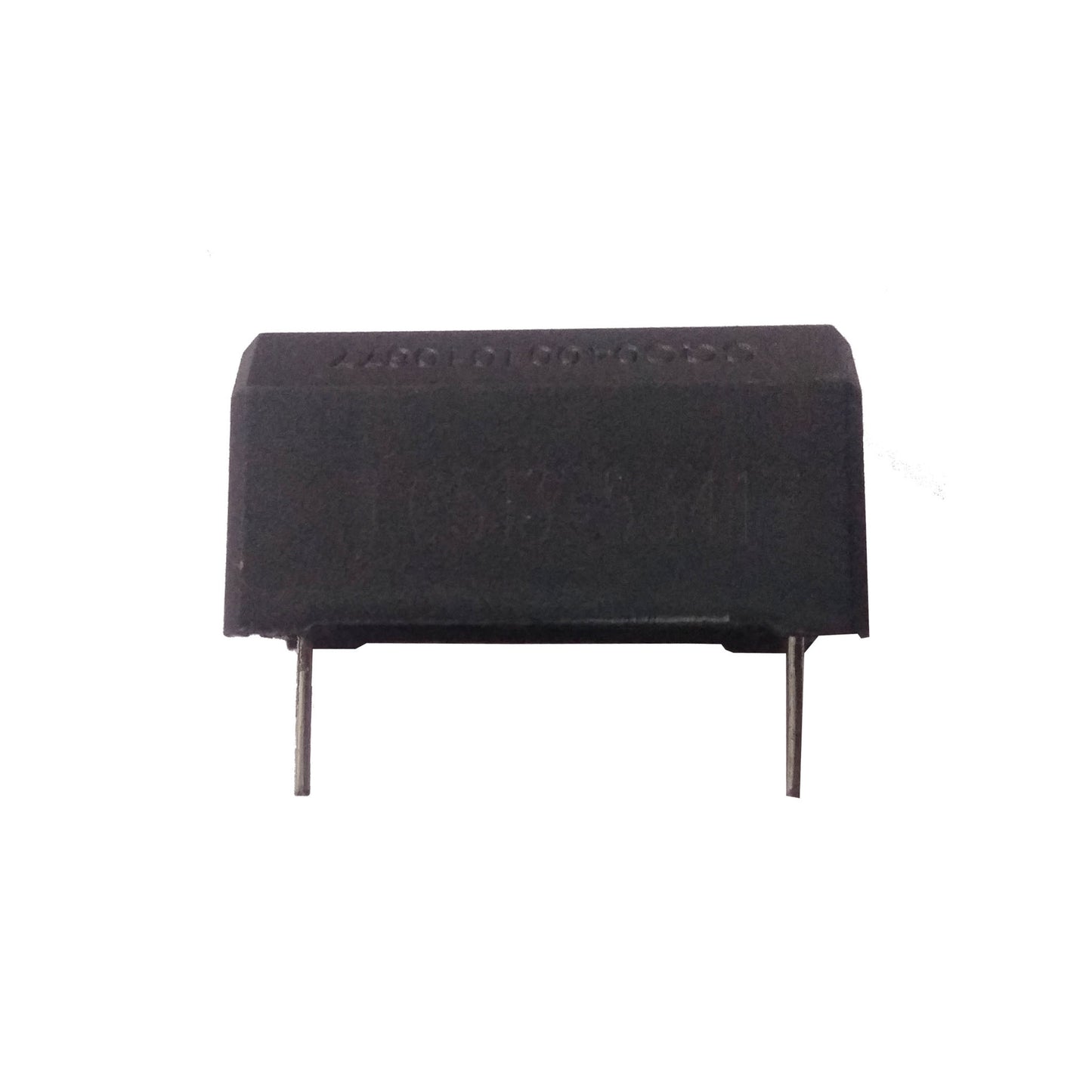

5µF 400V 275V High Voltage Capacitor – Induction Stove Spare Part India

Looking for the 5µF 400V / 275V high voltage capacitor for induction stove repair? This large electrolytic or film capacitor is used in the DC bus filter stage of induction cooktop power supplies — smoothing the rectified DC voltage before it reaches the IGBT switching circuit.

Induction Stove Capacitor Types — Complete Guide

Symptoms of DC Bus Capacitor Failure

• Induction stove operates but produces humming or buzzing noise
• Stove works but trips RCD/RCCB at home
• Inconsistent heating — power output varies unexpectedly
• Capacitor visibly bulged or leaking electrolyte

Key Features

• 5µF 400V / 275V capacitor — DC bus filter stage
• High voltage rated — handles induction stove DC bus voltage
• Compatible multiple Indian induction stove brands
• Available in 1, 2, 5, or 10 piece packs

Related Products

• 0.3µF 630V Induction Stove Resonant Capacitor
• 2µF MKP-X2 275V Induction EMI Filter Capacitor

Buy in India

Faritha.com. Same-day dispatch before 2 PM. 1,42,000+ customers since 2018. WhatsApp: 70109 73253

FAQ

Q: How do I test a 5µF capacitor?
Capacitance meter at 100Hz — healthy 5µF reads approximately 5.0µF. ESR meter (equivalent series resistance) — high ESR indicates electrolytic degradation. Visually inspect for bulging or leaking top vent.

Q: Is 5µF 400V the same as 5µF 275V?
Same capacitance (5µF) but different voltage ratings. 400V has a higher voltage rating and is safer for DC bus use. 275V is the AC rated equivalent. Always match or exceed the original voltage rating.
