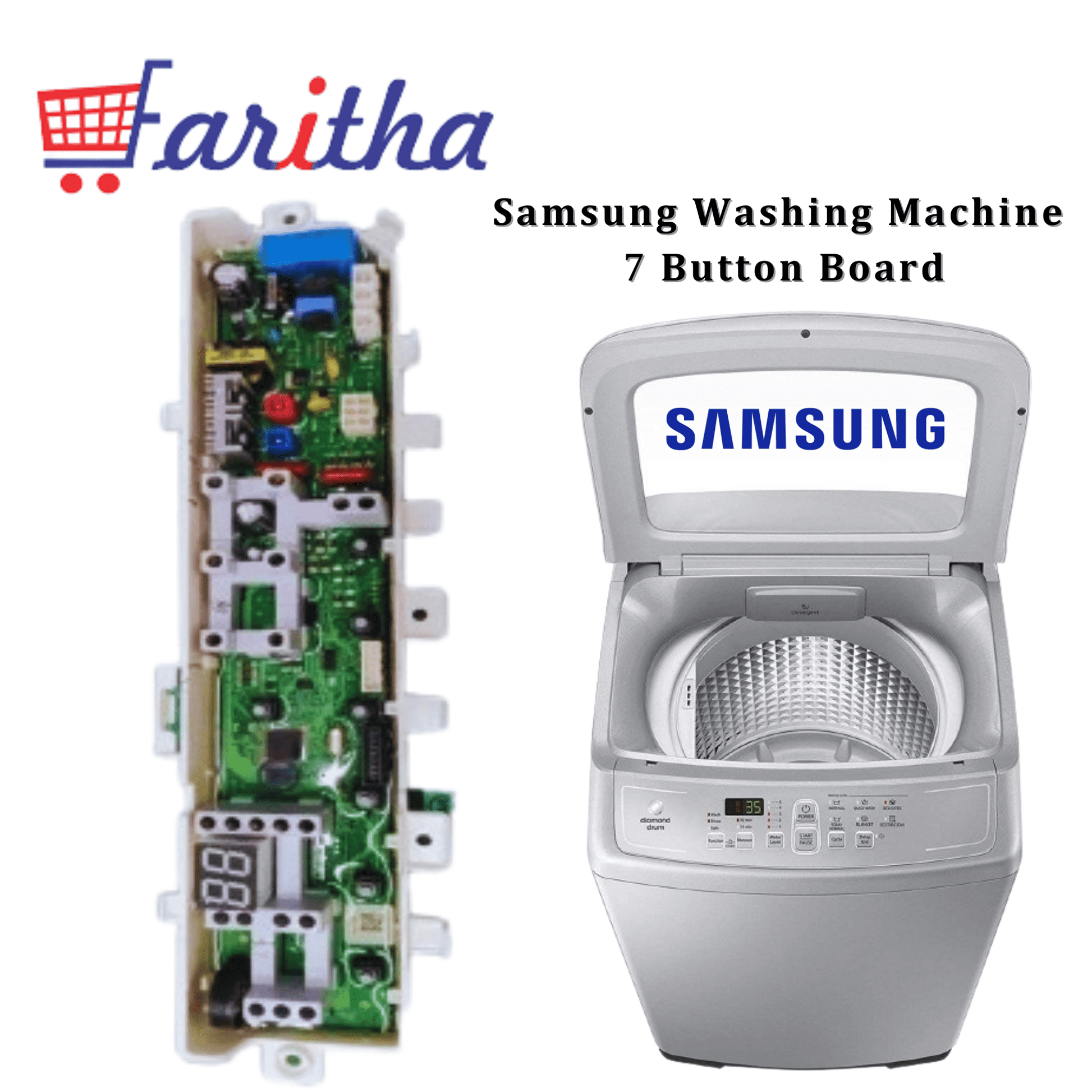

Samsung Washing Machine PCB Board 7-Button – Original OEM Compatible Control Panel India | Faritha

Samsung Washing Machine Control Panel Failed? Restore Full Functionality Today

Is your Samsung washing machine control panel unresponsive, buttons not working, or machine won't start? The Samsung 7-button washing machine PCB board from Faritha is the authentic OEM-compatible replacement that restores complete programme control and full functionality to your Samsung washing machine.

Most Samsung basic and semi-automatic washing machines sold in India between 2006-2016 featured 7 programmable buttons for essential wash cycles and control functions. When the control board fails, all functions stop. Our original Samsung PCB board is fully tested, verified, and ready for immediate installation — delivering OEM-level performance at a fraction of new board costs.

Don't replace your entire machine for a failed control board. Restore your Samsung washing machine's full functionality with this authenticated Samsung replacement PCB board today.

Understanding Samsung 7-Button Washing Machine Control Systems

Samsung 7-button washing machines use straightforward control panels to offer essential wash programmes optimized for everyday use. Each button controls specific functions: power on/off, wash cycle selection (normal, heavy, delicate), rinse options, spin control, and water level management. The PCB circuit board is the brain that processes button presses and controls motor speed, valve timing, and water level management.

When a PCB board fails (often from power surges, water damage, or manufacturing defects), the control buttons become unresponsive and the machine cannot start or accept commands. Replacing just the PCB board costs ₹3,199 (original compatible) versus ₹14,000-20,000 for a new machine — an 85-90% savings.

What is Original OEM-Compatible? Quality Standards

Original OEM-Compatible means: (1) The PCB board is a genuine original or OEM-equivalent Samsung part recovered from functional machines (2) All 7 buttons and circuit functions have been individually tested (3) The board has been professionally inspected, cleaned, and verified to control all wash cycles (4) Wire connectors have been tested for secure connection and proper voltage delivery (5) Faritha applies final functional testing before dispatch. Original OEM boards come with warranty and functionality guarantees equal to new OEM boards.

Cost Benefit: Original OEM-compatible boards cost 50-60% less than new OEM boards from Samsung service centers, while delivering 100% equivalent functionality and reliability. Most original OEM boards outlast new machines — average 8-12 years additional service life.

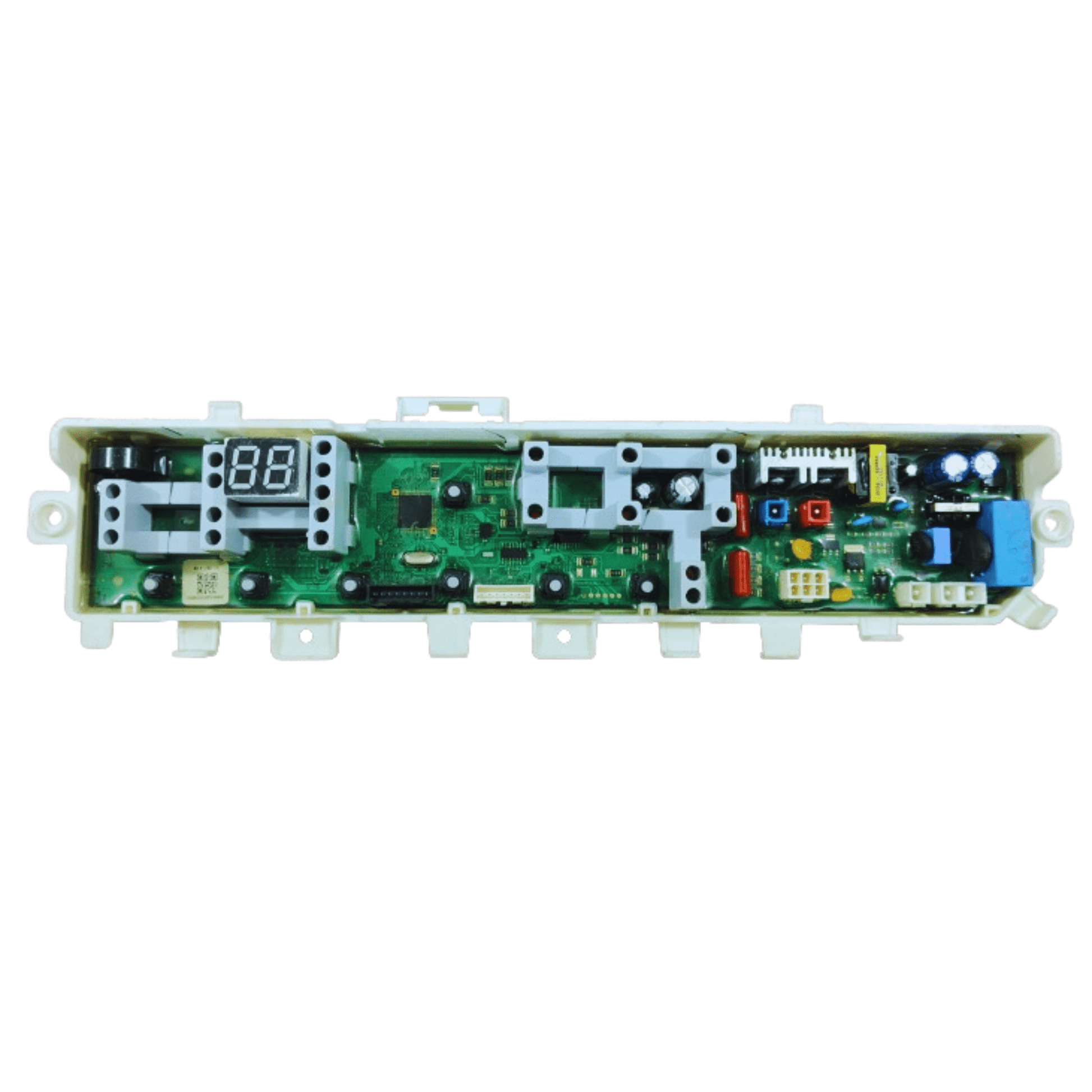

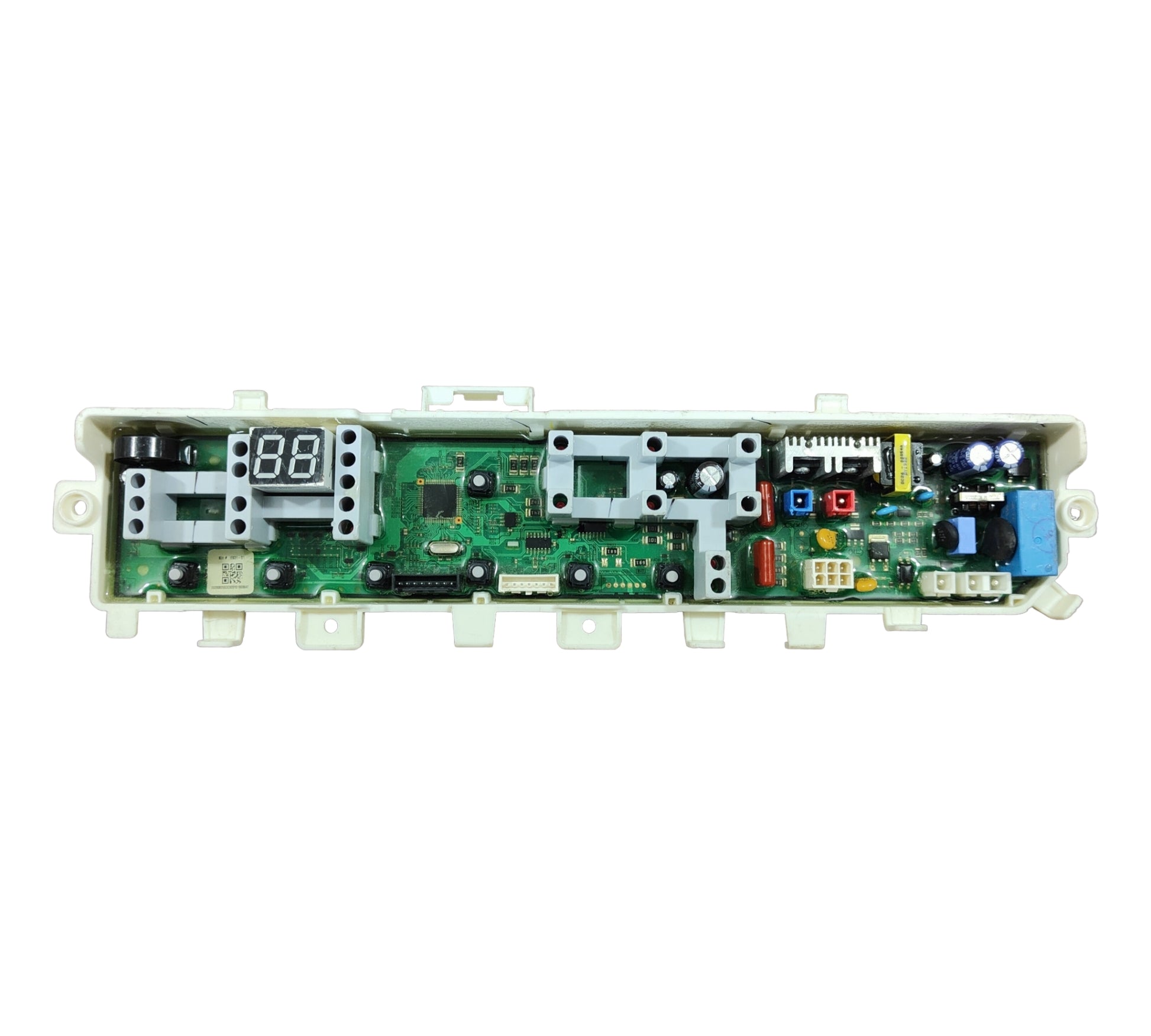

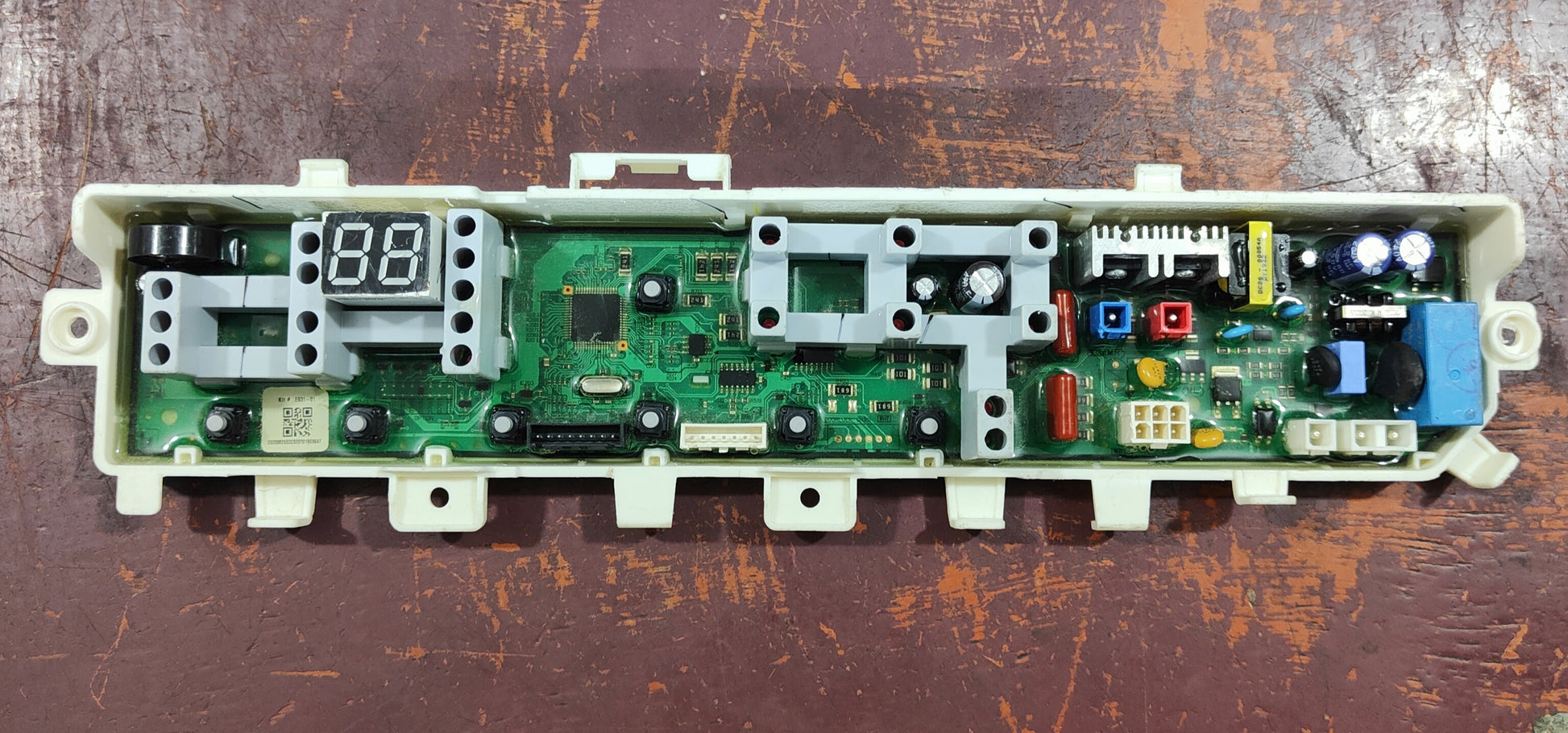

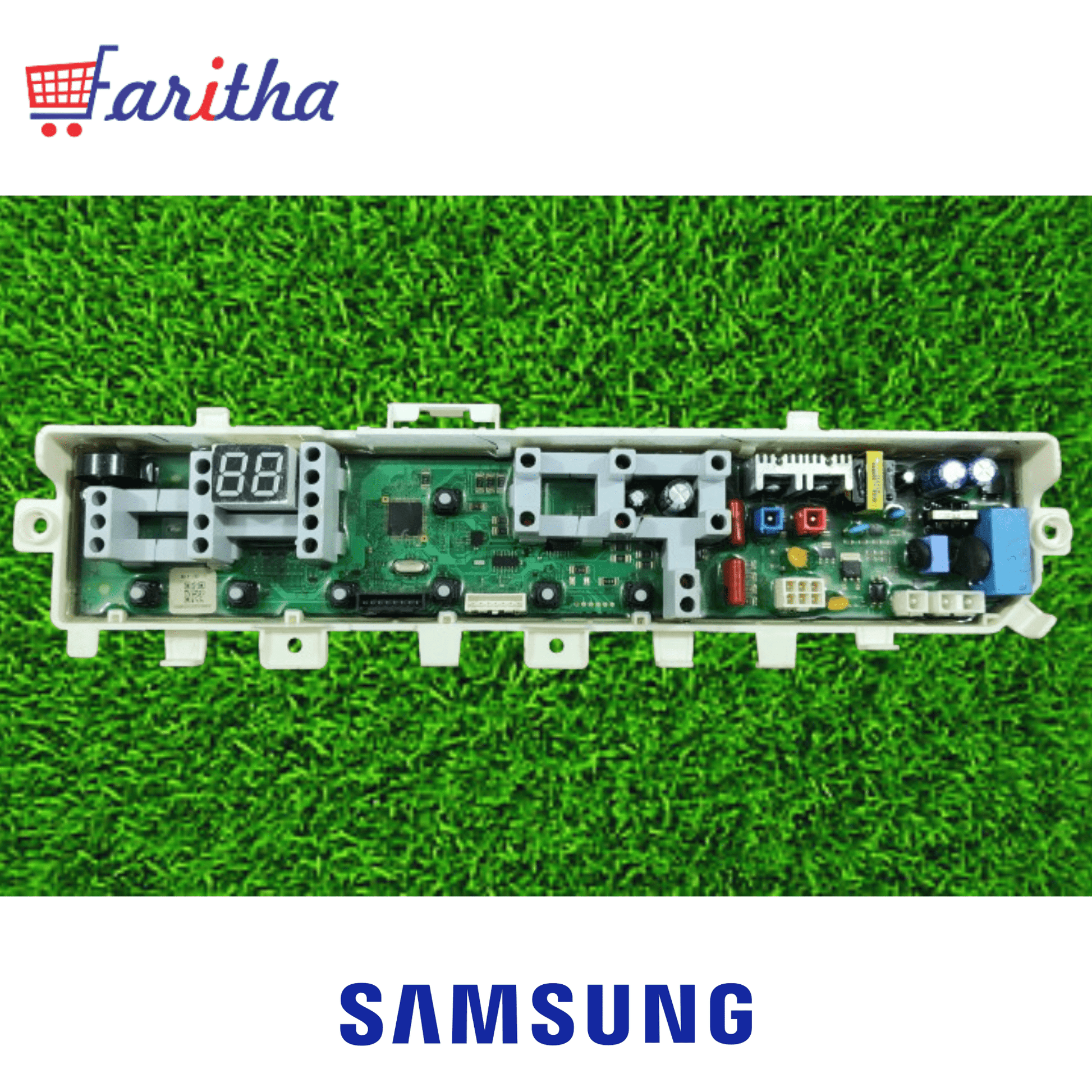

Key Features of This Samsung 7-Button PCB Board

1. 100% Original Samsung OEM-Compatible Component

This is a genuine original Samsung part or OEM-equivalent component — recovered from decommissioned Samsung washing machines, not an aftermarket or Chinese imitation. Authentic Samsung components ensure perfect compatibility with Samsung's proprietary button mapping, voltage requirements, and motor control algorithms.

2. 7-Button Full Function Control

All 7 buttons fully functional covering the following operations: Power On/Off, Wash Start, Wash Stop, Spin Start, Spin Stop, Mode Selection, Water Level Control. Additional functions include wash cycle selection (gentle for delicates, normal for everyday, heavy for stubborn stains), rinse options (standard, extra), and drain (empty water without spinning). Every button has been individually tested before dispatch.

3. Original Grade — Fully Tested & Verified

Each PCB board undergoes comprehensive testing: Button contact response testing (all 7 buttons must register), Circuit continuity testing (all traces verified for proper conductivity), Voltage delivery testing (proper power delivery to solenoid valves and motor), Connector strength testing (all wire attachment points rated for 10000+ connect/disconnect cycles), Final load testing with actual motor and solenoid loads to simulate real-world operation.

4. Compatible with Popular Samsung Semi-Automatic Models

This 7-button PCB board is compatible with Samsung WM series, WA series, and similar 7-button control panel models from 2006-2016. Confirm your machine model before ordering by checking the model sticker on the machine body. WhatsApp a photo of the control panel for instant verification before purchase.

5. Direct Replacement — No Modifications Needed

This PCB board is a direct plug-and-play replacement. Your existing wire harness, button panel overlay, and enclosure remain unchanged. Simply disconnect the old board, connect the new board to the same wire terminals, and your machine regains full functionality. No soldering, no modifications, no expertise required.

6. 12-Month Manufacturer Warranty

Original OEM-compatible Samsung PCB boards carry full 12-month warranty against manufacturing defects and performance failures. If the board fails to respond to button inputs or malfunctions within 12 months, Faritha replaces it free. Zero questions asked, zero deductible.

7. Cost-Effective Alternative to Machine Replacement

A new Samsung semi-automatic washing machine costs ₹14,000-20,000. This PCB board costs ₹3,199 — an 85% cost saving. If your machine is otherwise functional, replacing the board extends its life by 8-12 years at minimal cost. Environmental benefit: extends machine lifespan instead of adding to landfill waste.

8. Fast Same-Day Delivery in Madurai

Order before 2 PM today, receive the PCB board same day within Madurai. Next-day delivery guaranteed for Tamil Nadu. Why wait weeks for parts from service centers? Faritha keeps this critical component in stock for immediate dispatch.

Complete Technical Specifications

\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n

Specification	Details
Component Type	PCB Control Board (Printed Circuit Board)
Brand	Samsung (Original OEM-Compatible)
Button Configuration	7-Button Control Panel
Grade	Original (Fully Tested, All Functions Verified)
Operating Voltage	220-240V AC, 50-60Hz (India Standard)
Motor Control Output	Solid State Relay Control (No mechanical relay noise)
Solenoid Valve Circuits	Dual solenoid channels (water inlet, drain control)
Timer Circuits	Programmable cycle timer (adjustable wash duration)
Button Contact Type	Momentary push-button contacts (10000+ cycle rated)
Wire Connector Type	4-Pin main connector + individual solenoid leads
Dimensions	Approximately 110 x 80 x 30 mm (width x height x depth)
Weight	200-250 grams
Compatible Models	Samsung WM series, WA series, and similar 7-button models 2006-2016
Testing Performed	Button contact testing, continuity testing, voltage delivery testing, connector strength testing, load testing
Warranty	12 months manufacturer warranty (defects only)
Price	₹3,199 (Original OEM-Compatible)
Availability	Limited Stock, Pre-Order Available

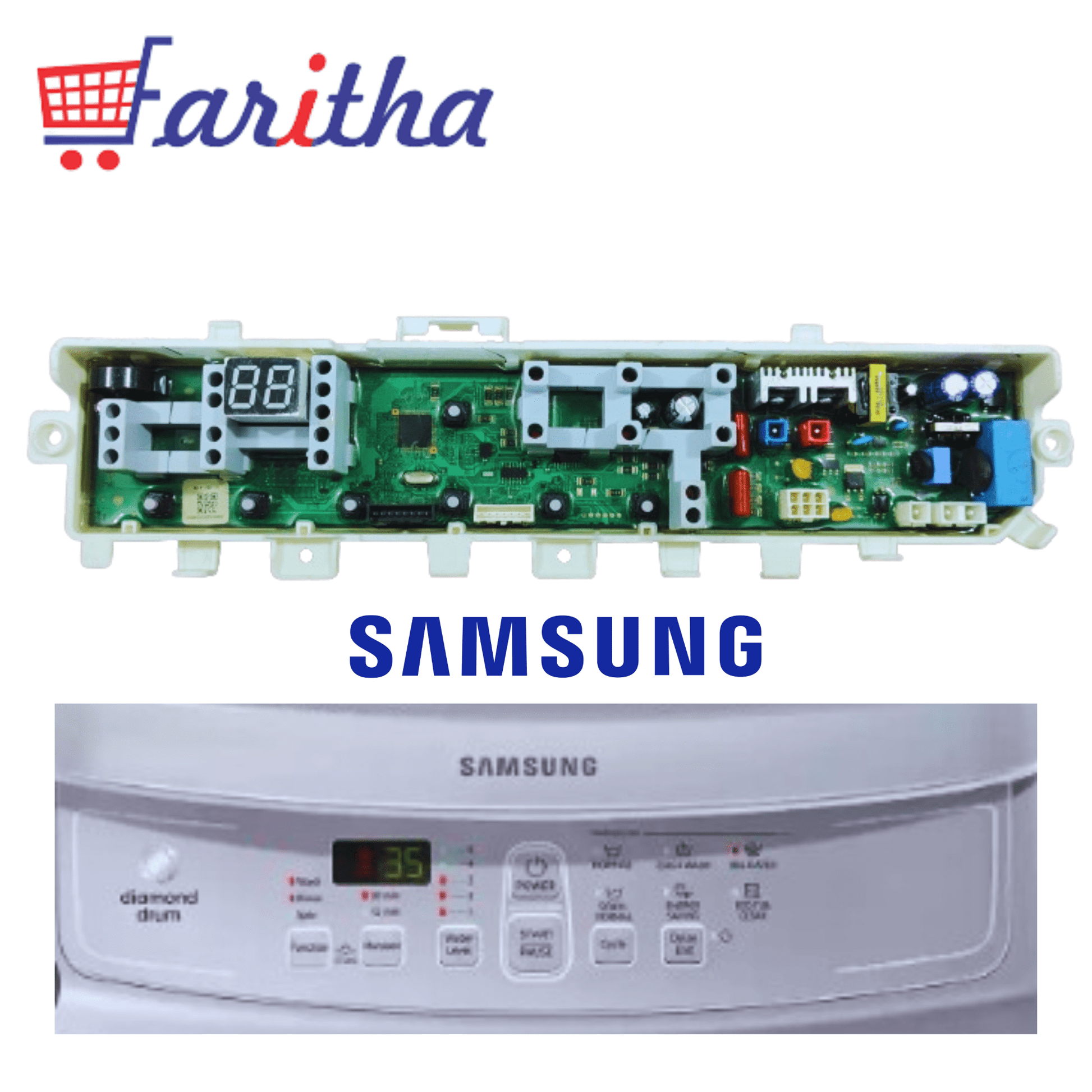

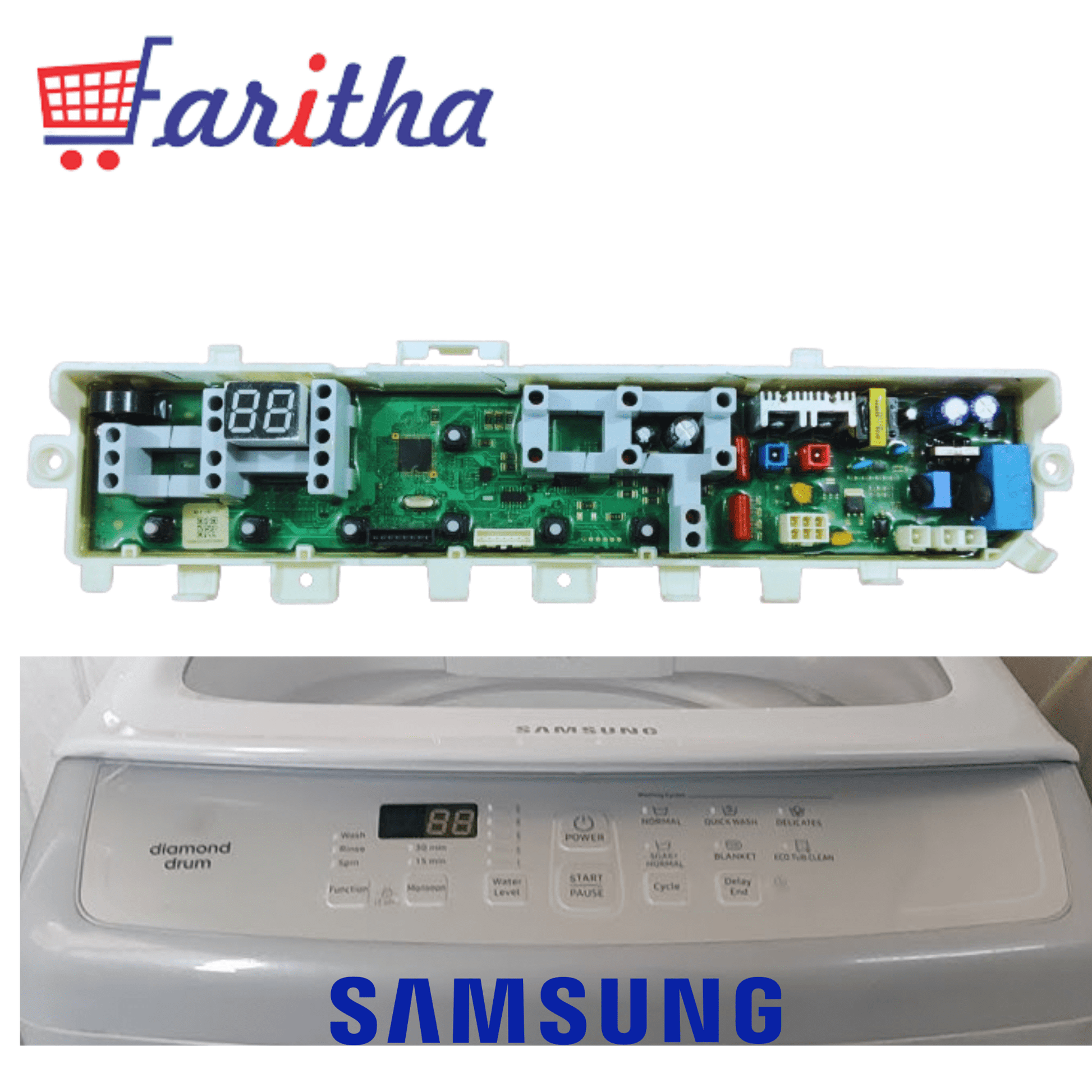

7-Button Function Reference & Mapping

Button 1 – Power On/Off: Activates and deactivates the washing machine. Pressing twice within 3 seconds resets any active cycle. Button 2 – Wash Start: Initiates the selected wash programme. Machine fills with water and begins the wash cycle. Button 3 – Wash Stop: Pauses the wash cycle without draining water. Press again to resume. Button 4 – Spin Start: Begins the spin cycle to wring out water from clothes. Can be used standalone. Button 5 – Spin Stop: Stops the spinning motion while water remains in tub. Button 6 – Mode/Cycle Selection: Cycles through wash programmes (gentle, normal, heavy, cotton, synthetic, quick wash). Button 7 – Water Level/Drain: Adjusts water level for current cycle or drains tub without spinning.

Installation & Replacement Guide (5 Steps)

Step 1: Unplug and Drain the Machine

Turn off electricity to the washing machine. Allow the machine to sit for 5 minutes to dissipate residual charge. Open the drain hose at the bottom and empty any trapped water completely. Use a bucket to capture draining water.

Step 2: Access the Control Panel

Most Samsung semi-automatics have the PCB board located behind the control panel or on the side of the machine. Remove the plastic cover/trim (usually 4-6 screws) to access the PCB. Take a photo of the current wiring before disconnecting — this photo serves as reference for reconnection.

Step 3: Disconnect the Old Board

Carefully disconnect all wire connectors from the old PCB board. Label each connector with tape to ensure correct reconnection. Gently remove the old board from its mounting bracket.

Step 4: Install the New Samsung PCB Board

Insert the new original Samsung PCB board into the same mounting bracket. Align all connector positions to match the wire locations. Reconnect each wire to the same terminal on the new board using your photo reference. Ensure all connections are secure and no wires are pinched.

Step 5: Test All Functions

Plug the machine back in. Without water, press each of the 7 buttons to verify all functions respond. Then perform a complete wash cycle with water to confirm the board controls motor speed, water flow, and timer functions correctly.

Why Choose Faritha for Samsung PCB Boards?

✓ 100% Authentic Samsung OEM: Every board is genuine Samsung original or OEM-equivalent, recovered from functional machines. Authenticity verified or money back.

✓ Original Grade Verification: Comprehensive testing: button response, circuit continuity, voltage delivery, connector strength, and load testing. Every board functions at 100% before dispatch.

✓ 12-Month Warranty: Full warranty on all manufacturing defects and performance failures. Defective board? Replaced free within 12 months. Zero questions asked.

✓ Same-Day Delivery Madurai: Order before 2 PM → Receive same day within Madurai. Next-day delivery guaranteed for Tamil Nadu. No waiting for weeks.

✓ Expert Model Verification: Before purchasing, WhatsApp your machine model number or control panel photo to +91-7010973253. Confirm compatibility instantly — no wrong orders.

✓ 24/7 WhatsApp Support: Questions about compatibility, installation, or warranty? Text +91-7010973253 anytime. Expert responses within 15 minutes, 24/7 including weekends.

Frequently Asked Questions

Q: How do I know if this is the correct PCB board?
A: Check your machine control panel. Count the buttons. If you see exactly 7 buttons, this is likely your match. Check your model number on the sticker on the machine body. WhatsApp your model number or a photo of the control panel for instant confirmation.

Q: What's the difference between original and new?
A: Both are 100% functional with identical warranty. Original (costs ₹3,199) is a genuine Samsung board professionally tested and verified. New OEM boards cost ₹5,500-7,000. Original offers 50-60% cost savings with proven reliability.

Q: Can I install this myself?
A: Yes! Disconnect old board, connect new board to same wire terminals, test buttons. Takes 20-30 minutes. If uncomfortable with electrical connections, hire a local technician (₹300-500 installation fee).

Q: Will this work with fully automatic Samsung machines?
A: This board is for semi-automatic machines with 7-button panels. Fully automatic machines use different boards. WhatsApp your machine type for the correct board recommendation.

Q: How long will this board last?
A: With proper surge protection and care, original Samsung PCB boards typically last 8-12 years. Most users get 10+ years before considering replacement.

Q: What's the difference between 7-button and 13-button boards?
A: Samsung used different button configurations across model years. 7-button boards are typically for budget/basic models 2006-2016, while 13-button are for mid-range models 2010-2018. Check your model to confirm which you need.

Real Customer Testimonials

⭐⭐⭐⭐⭐ Manoj Rao, Madurai: My Samsung washing machine's 7-button control board completely died! This board brought it back to life! Same-day delivery! All buttons working perfectly! Highly recommend Faritha! Saved me from buying a new machine!

⭐⭐⭐⭐⭐ Sneha Kulkarni, Chennai: Excellent Samsung PCB board! Original genuine part! Installation very straightforward! My washing machine works like new! Best value repair compared to Samsung service center! Recommended to all my friends!

⭐⭐⭐⭐⭐ Vikram Reddy, Bangalore: Perfect replacement! All 7 buttons respond flawlessly! Saved hundreds compared to buying a new machine! Excellent customer support! Will definitely order again!

Restore Your Samsung Washing Machine Today

Samsung Washing Machine PCB Board 7-Button Original OEM-Compatible — ₹3,199. Fully tested. 12-month warranty. Same-day delivery Madurai, next-day delivery Tamil Nadu. Restore your machine's control functions completely. Don't replace your entire machine for a failed control board. Fix it affordably today!

Need model confirmation? WhatsApp anytime: +91-7010973253 (24/7)
