Sony 50W950D T-Con Board – 50-Inch Premium LED TV Replacement Panel Controller India | Faritha

50-inch Sony 50W950D premium LED TV showing blank screen, vertical lines, half-screen fault, or washed-out colors? The T-Con board 50W950D is the timing controller replacement board specifically engineered for 50-inch Sony premium LED television panels using this exact model specification. If your Sony 50W950D TV lost video output but the backlight and power LED are working normally, the T-Con board is the most likely culprit — and this is the OEM-compatible solution. For premium Sony TVs, preserving the original picture quality is critical — this replacement board restores your TV to factory-standard performance.

What Is a T-Con Board and Why Does It Fail?

The T-Con (Timing Control) board is the critical circuit board inside every LED television that converts the video signal from the main motherboard into precise digital instructions for the LED panel's millions of pixels. It works by sending synchronized timing signals (called LVDS — Low-Voltage Differential Signaling) to the panel's gate and source driver ICs, which control exactly when each pixel switches on and off to display the image.

When the T-Con board fails, the LED panel cannot receive these timing signals, resulting in: completely blank screen (backlight on, sound working, but no image), half-screen failure (left or right half shows image, other half is black), vertical or horizontal colored lines, image appears briefly then goes black, washed-out or inverted colors, or scrambled display.

T-Con boards typically fail due to electrolytic capacitor aging (dry capacitor syndrome), manufacturing defects in LVDS connectors, or thermal stress from the TV's normal operation over 5-8 years. Unlike power supply failures, T-Con board failure does NOT damage the LED panel itself — replacement of this single board often restores premium Sony TVs to perfect working condition.

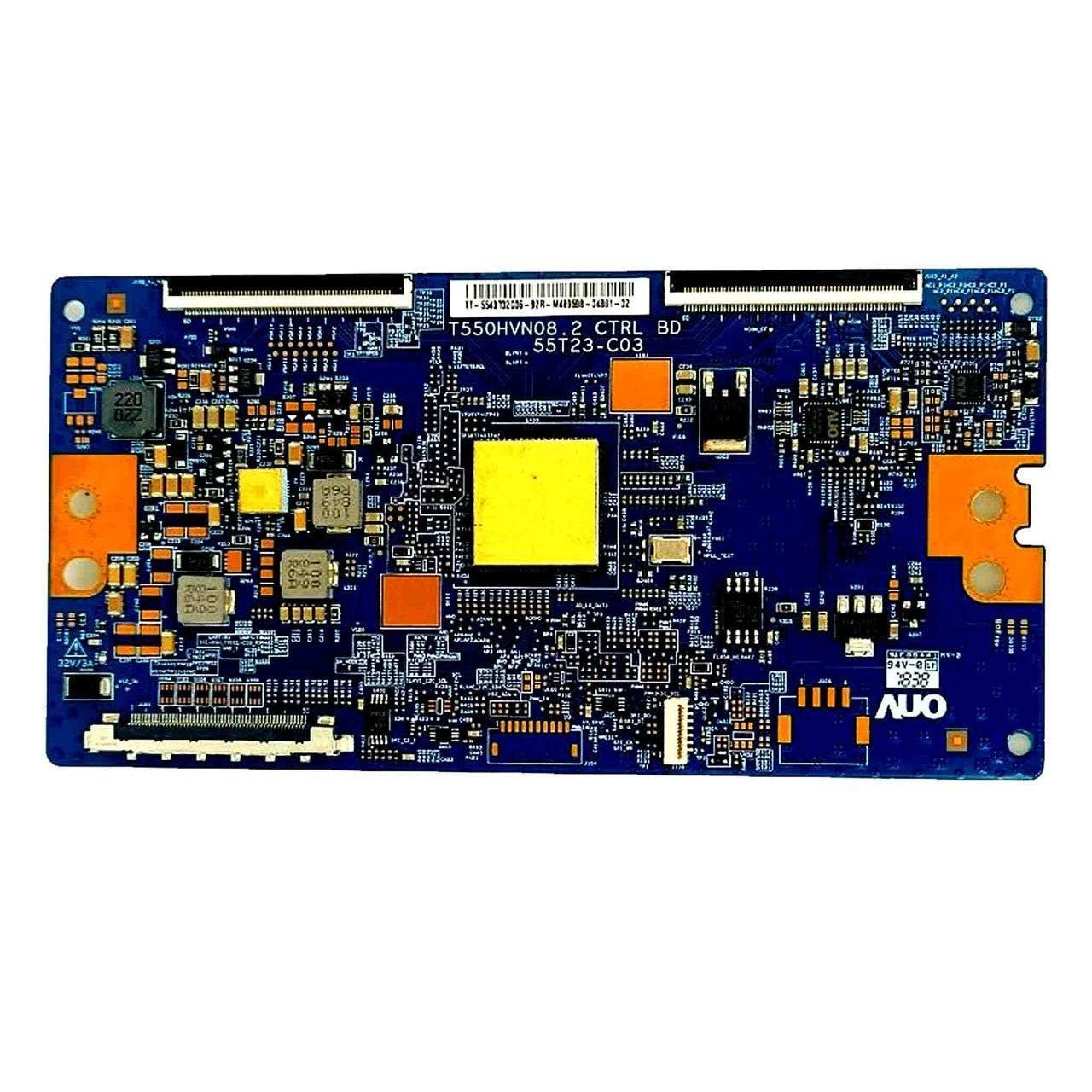

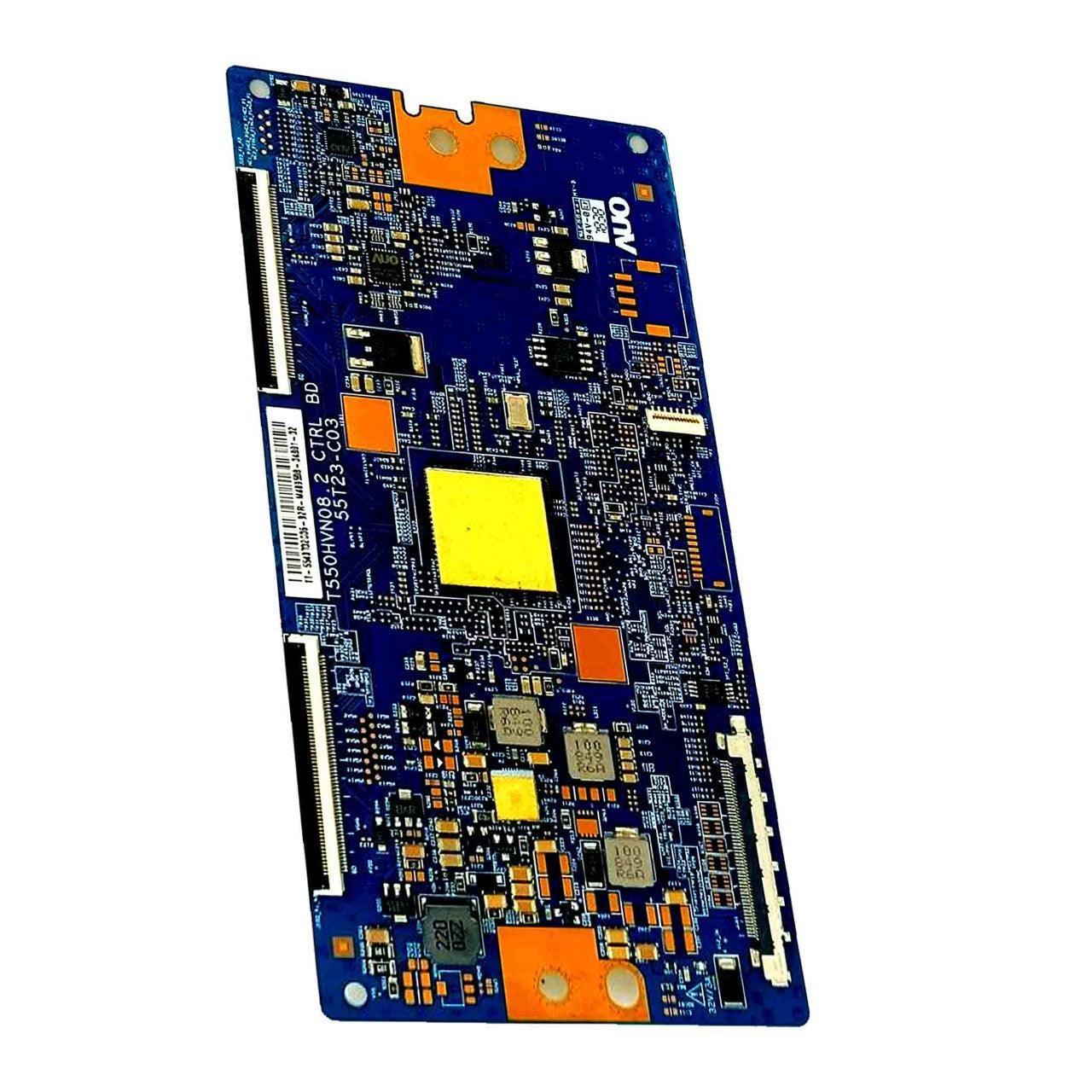

Sony 50W950D T-Con Board — Exact Specifications

This board is designed for 50-inch Sony premium LED TV models using the W950D panel specification. The board model number is determined by the LED panel manufacturer (Sony Display, LG Display, AU Optronics), NOT the TV brand — so this T-Con board may appear in Sony-branded TVs, and occasionally in other premium brands that use the same 50-inch W950D panel.

Is the Sony 50W950D T-Con Board the Right Replacement?

To confirm your TV uses the 50W950D T-Con board: Check your Sony TV's model number (usually on the back panel or in the TV menu under Settings > Model Info). Look for 'KDL-50W950D' or 'KDL-50W951A' branding. Power off and unplug your TV. Wait 30 seconds. Remove the TV's back panel using a Phillips screwdriver. Locate the T-Con board (medium-sized circuit board near the LED panel, roughly 20cm × 10cm). Read the board's model number label. Look for '50W950D' or 'W950D' designation. Unsure? Send us a photo via WhatsApp at +91-7010-973253. Our technicians confirm within 2 hours, free of cost.

How to Replace Your Sony 50W950D T-Con Board — 5-Step Installation Guide

Difficulty Level: Moderate (Large 50-inch TV requires careful handling)

Step 1: Preparation & Safety (10 minutes)

Sony 50-inch TVs are large and heavy. Gather tools: Phillips screwdriver (PH2), small flashlight, anti-static wrist strap (highly recommended), and replacement W950D T-Con board. Get a helper — this TV weighs 25-30 kg. Ensure work area is clean, dry, well-lit, with plenty of table space. Power off TV completely. Unplug from wall. Wait 30 seconds for capacitor discharge. Do NOT work on this TV alone.

Step 2: Disassembly (20 minutes)

With your helper, carefully turn TV face-down onto a well-padded surface (blanket, foam, or towel). The large 50-inch panel is fragile. Locate all screws on back panel (typically 10-14 screws on large Sony TVs). Remove carefully, placing each in a labeled container. Gently pry plastic back cover from frame. Large TVs have more plastic clips — be patient. Do not force. Once the back is free, set it aside in a safe location with your helper.

Step 3: Locate & Photograph (15 minutes)

Inside the large TV, you'll see the massive LED panel (50-inch glass sheet at front), main motherboard, power supply, and multiple cable runs. The T-Con board on large Sony TVs is typically positioned on the left or right edge, near where multiple cables connect to the panel. Cables may be routed in complex patterns. Take clear, detailed photos of: board position relative to panel edges, LVDS cable connections (typically 2-3 connectors), strip connector positions, cable routing. Record video — critical for reassembly of this large, complex TV.

Step 4: Replace Board (25 minutes)

Carefully disconnect LVDS ribbon cables by lifting small levers at each connector base (do not pull the ribbon cable itself). On 50-inch Sonys, there are often multiple LVDS connections — disconnect all carefully. Unscrew the mounting bracket holding the T-Con board (typically 3-4 screws). Carefully lift the old board out — do not touch the LED panel or other circuitry. Position new W950D T-Con board in the exact same location and orientation. Secure with same screws. Reconnect LVDS cables in the exact order shown in your reference photos. Push each connector firmly until click.

Step 5: Testing & Reassembly (20 minutes)

Do NOT turn TV upright yet. Plug in power with TV still face-down (safer for testing). Power on briefly. If image appears on the panel, immediately power off and unplug. Once confirmed working face-down, power off and unplug. With your helper, carefully turn TV back upright. Reassemble back cover, securing all screws. Test the TV in its normal upright position. If issues occur, contact us via WhatsApp immediately.

Why Choose Faritha's Sony 50W950D T-Con Board?

• Premium Sony Quality Assurance — Tested for LVDS interface, connector integrity, signal output to match Sony's strict specifications
• Exceptional Value Proposition — ₹4,888 vs. ₹50,000-70,000 for replacement Sony 50-inch TV
• Same-Day Madurai Delivery — Orders before 2 PM dispatched same day
• 24/7 WhatsApp Support for Complex Repairs — +91-7010-973253 for detailed guidance on large TV installation
• 6-Month Warranty — Free replacement for DoA or manufacturing defects
• 1,42,000+ Customer Trust Since 2018 — Madurai-based, trusted by technicians and premium TV owners

Frequently Asked Questions (FAQ) About Sony 50W950D T-Con Board

Q1: Is ₹4,888 reasonable for a T-Con board replacement?

A: Absolutely. Replacement Sony 50-inch TVs cost ₹50,000-70,000. Even Sony service centers charge ₹8,000-12,000 just for diagnosis. Our tested T-Con board at ₹4,888 is exceptional value — it restores your premium Sony TV to full working condition at a fraction of replacement cost.

Q2: How long does a T-Con board typically last in premium Sony TVs?

A: T-Con boards are solid-state with no moving parts. Under normal TV operation (8-10 hrs/day at 25°C), quality boards last 7-12 years. Sony's premium TVs often last longer due to better heat management. Failure is rare in Sony W950D series (post-2013) unless there's power surge damage or extreme heat.

Q3: Is professional installation necessary for a 50-inch Sony TV?

A: We recommend professional installation OR very careful DIY with a helper. 50-inch TVs are large, heavy, and fragile. If you're not comfortable, ask your local TV service center to install. Labor: ₹500-1,000. Combined cost still far below TV replacement.

Q4: Will this board work with other Sony Bravia models?

A: T-Con compatibility is determined by the panel model, NOT the TV brand or series. The 50W950D board is specific to 50-inch Sony Bravia W950D panels. Other Sony sizes/models require different T-Con boards. Check your TV's panel model before ordering. Send us a photo via WhatsApp for confirmation.

Q5: What's your return and warranty policy for premium repairs?

A: Every board tested before dispatch. DoA board? Replace free within 7 days. Manufacturing defects within 6 months? Full replacement, no questions. 100% prepaid model ensures transparency. We stand behind all our products.

Q6: Do you provide installation assistance via WhatsApp?

A: Yes. Our experienced technicians provide free WhatsApp guidance throughout installation. Photo verification, step-by-step coaching, troubleshooting — all available 24/7 at +91-7010-973253. You're never alone in this repair.

Customer Testimonials — Real Faritha Customers

'Saved ₹60,000 on a Sony 50-inch TV!'
— Amit M., Mumbai (June 2026)
'My premium Sony 50-inch TV went completely black. Dealer quoted ₹60,000 for replacement. Found Faritha's T-Con board for ₹4,888. Installed with WhatsApp guidance. TV works perfectly. Best ₹4,888 I ever spent!'

'Same-day delivery from Madurai to Mumbai'
— Sanjana P., Mumbai (May 2026)
'Ordered 10 AM, received 8 PM same day via courier. Premium packaging. Board quality excellent. My Sony TV picture is crystal clear now. Exceptional service for a premium TV!'

'Professional-grade quality at half the price'
— Rajiv K., Delhi (April 2026)
'Faritha team verified the exact board I needed via WhatsApp. Received tested unit. Installed it myself (with their guidance). TV repair shop would have charged ₹10,000+. This T-Con board: ₹4,888. Unbelievable value!'

Why Faritha.com? Our Promise to You

Since 2018, Faritha.com has been India's trusted platform for premium electronics spare parts and TV repairs. We serve 1,42,000+ customers including home theater enthusiasts and technicians. For premium Sony TV owners: Fair prices. Tested products. Fast delivery. Honest support. Based in Madurai, Tamil Nadu — trusted by professionals. 100% prepaid ensures transparency. Every product rigorously tested. WhatsApp support 24/7. Same-day Madurai, next-day pan-India delivery.
