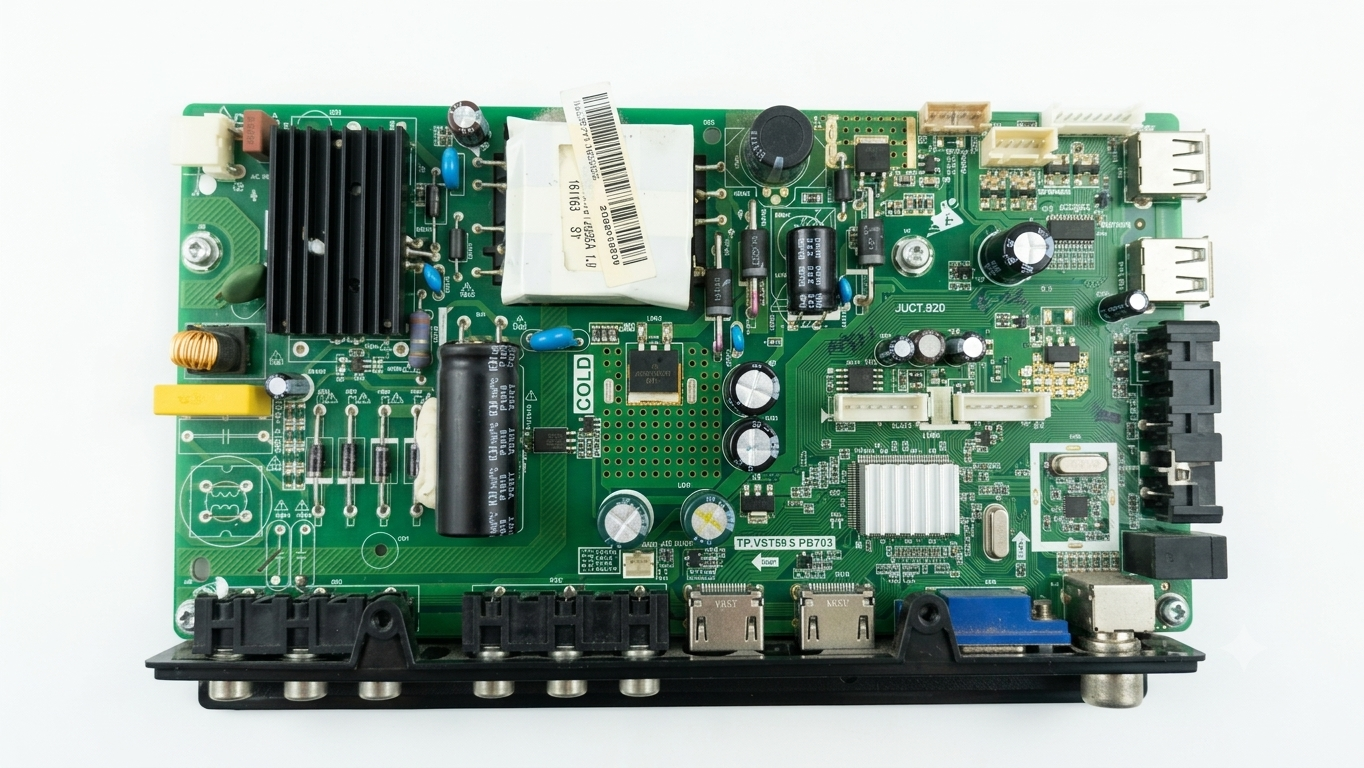

TP.VST59S.PB703 LED TV Main Board (Combo Board with Integrated Power Supply

This is an all-in-one universal LED TV motherboard (model TP.VST59S.PB703) designed to serve as a direct replacement or upgrade for various 24-inch to 42-inch LED/LCD televisions. This "combo" style board conveniently integrates the main logic controller, backlight driver, and the power supply unit onto a single printed circuit board (PCB), making it an efficient space-saving solution for TV repairs.
​Key Features & Specifications
​Model Number: TP.VST59S.PB703 (also compatible/interchangeable with various JUC7.820 series chassis structures)
​Board Type: 3-in-1 Combo Board (Main Board + Power Supply + LED Backlight Driver)
​Connectivity Interfaces:
​2 x HDMI Inputs
​2 x USB Ports (for media playback and firmware updates)
​1 x VGA (PC-RGB) Port with PC Audio Input
​1 x RF/Antenna Tuner Input
​Multi-port RCA Component/AV inputs & Audio outputs
​Display Support: Standard LVDS interface matching various panel resolutions (supports common HD and Full HD panels depending on firmware configuration)
​Design: Designed with a distinct partition separating the high-voltage "HOT" power side from the low-voltage "COLD" logic side for enhanced safety and component longevity.
